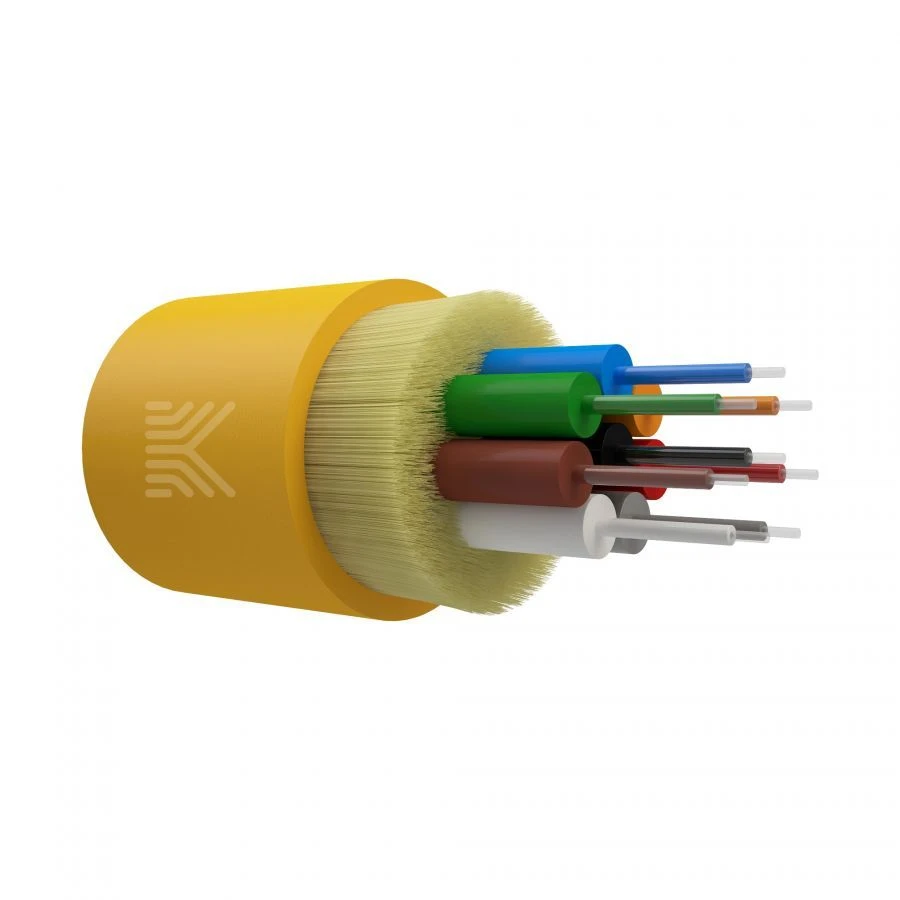

Optical Communication Cable NTSS-IN - High-Performance Indoor Distribution

Optical Communication Cable NTSS-IN for Efficient Indoor Communication Solutions

Manufacturer: PRODUCTION GROUP LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Optical communication cable NTSS-IN is designed for application on the unified telecommunication network of the Russian Federation. Optical distribution cable for internal laying Distribution with the possibility of termination with connectors or welding with intermediate termination elements, it is possible to organise cross and termination wiring. It is used for laying in pipelines and cable ducts, in risers and cable ducts, can be used in FTTx networks "optics to the subscriber", simultaneously on the main and distribution sections.

Gel-free design is convenient for splitting and installation with minimal losses on small radius bends. Optical fibres are manufactured in the territory of the Eurasian Economic Union member countries, protected by a buffer coating of low-smoke halogen-free compound (LSZH). The structure is reinforced with polyester or aramid yarns.

The cable outer jacket is made of flame retardant low smoke halogen free compound (LSZH).

Specifications

Total number of optical fibers
2...24 pcs
Type of optical fibers
G.651, G.652.D, G.655, G.657.A, ISO/IEC 11801
For G.652.D/G.657.A1 fibers, the attenuation coefficient at the operating wavelength for ?=1310nm is not more than, dB/km
0.36
For G.652.D/G.657.A1 fibers, the attenuation coefficient at the operating wavelength for ?=1550nm is not more than, dB/km
0.22
For OM1 fiber the attenuation coefficient at the operating wavelength for ?=850nm is not more than, dB/km
2.5
For OM1 fiber the attenuation coefficient at the operating wavelength for ?=1300nm is not more than, dB/km
0.8
For OM2, OM3, OM4 fibers the attenuation coefficient at the working wavelength for ?=850nm is not more than, dB/km
2.5
For OM2, OM3, OM4 fibers the attenuation coefficient at the working wavelength for ?=1300nm is not more than, dB/km
0.7
Permissible tensile load during operation
600...900
Power element
Polyester or aramid yarns
Fiber buffer coating and cable outer jacket
Flame retardant low smoke halogen free compound (LSZH)
Dielectric design
Armoured glass
Operating temperature, ºC
-40…+70

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
