Outdoor Telecommunications Cabinet SHU-C-8U 600x400x350 IP55

Available for Import

Outdoor Telecommunications Cabinet SHU-C-8U 600x400x350 for Secure Equipment Housing

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

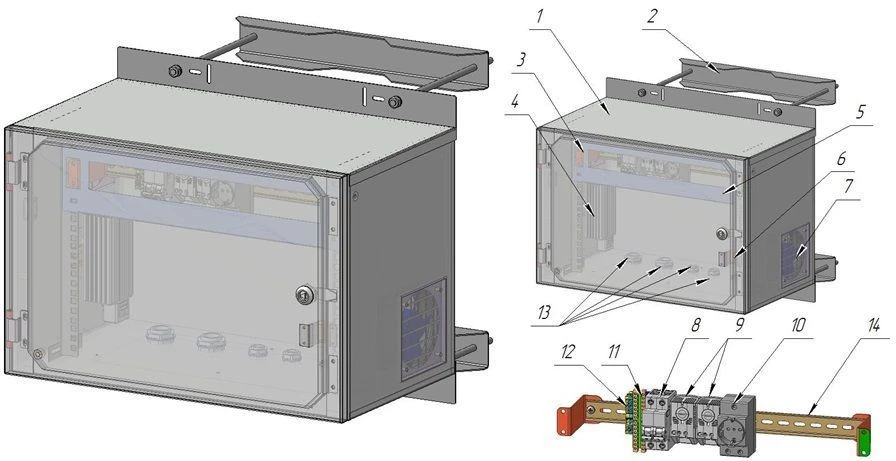

???-?-8U-600?400?350-??-ttk. Outdoor telecoms cabinet for placement of telecoms equipment with the possibility of mounting on the wall or to a street pole (support). IP 55 enclosure with mounting plate.

Usable height 8U. The cabinet is designed to install the following equipment: circuit breaker 16A 2P = 1 pc, socket 220 V on DIN rail = 1 pc. Bus PE, N = 2 pcs.

thermostat NO, NC = 2 pcs. heater 220 V, 60 W = 1 pc. Overall dimensions ??????

mm = 400?400?250. The product is an all-weather outdoor vandal-proof telecommunication cabinet designed for telecommunication equipment placement in moderate climate conditions with ambient air temperature from - 40°C to +50°C. The external structural elements of the cabinet are made of high-strength steel 1.5 mm thick and have a protective anti-corrosion epoxy powder coating with pre-phosphatised surfaces.

On the walls and door of the cabinet are elements of the grounding circuit.

Specifications

Resistance to mechanical external influencing factors (EIF)

according to gost 17516.1-90 (IEC 721-3-3-87) - m42

Resistance to mechanical (BBF) effects

according to iec 62262 class ik08

Height, U

Availability of fasteners to the support (pole)

Armoured glass

Type of accommodation

hinged outdoor

Operating temperature range

-35...40 °C

Connector

Cable type

Device type

Outdoor telecommunication cabinet

Height/story (unit)

Form factor (rack-mounted, freestanding)

Type of optical ports

Depth

350 mm

Protection class

IP55

Equipment

Support mounting

RAM

Number of processor cores

Slots

Number of processors

Weight

Flat grinder, Specialised grinder kg

Length

350 mm

Height

650 mm

Width

650 mm

Type of accommodation

outdoor for surface mounting

Type of construction

unassembled

Usable depth

350 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Upper limit of operating temperature

40 °C

Insulation thickness

10 mm

Availability of mounting plate

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
