Overview TR1300/1 Vector Network Analyzer for High-Frequency Applications

Electrical Testing Instruments

Manufacturer: PLANAR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

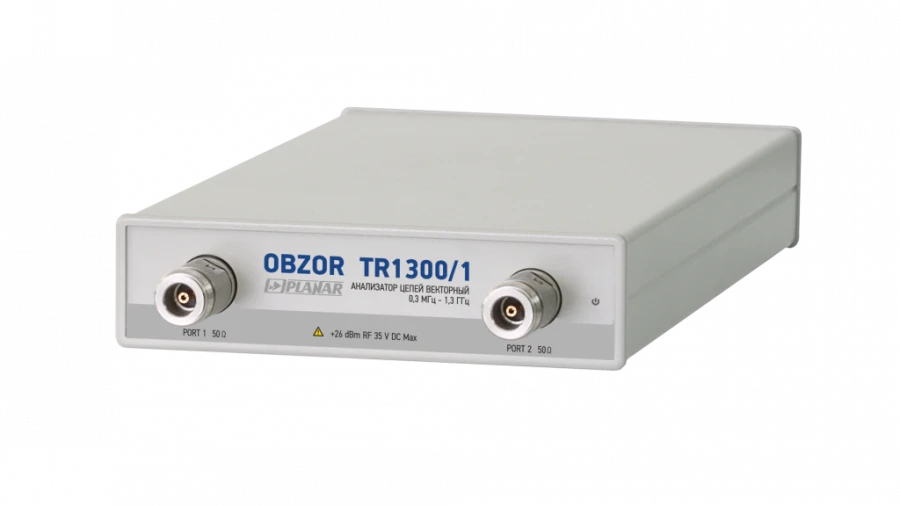

Overview-TR1300/1 is a two-port unidirectional vector circuit analyser with an operating frequency range from 300 kHz to 1.3 GHz. Structurally, the Overview-TR1300/1 vector circuit analyser combines test and heterodyne signal generators, output power control attenuator, switch (test signal propagation direction switch), measurement sections, multichannel receiver, control unit with signal processor and power supply in one housing. Measured parameters S11, S21.

Specifications

Operating frequency range

0.3...1300

Measurement range of the reflection modulus

0...1

Measuring range of the modulus of transfer coefficient

-90...13

Mean square deviation of the trace when measuring the modulus of transmission and reflection coefficients at the filter bandwidt

0.002
