Photoelectric Inverter UG-2500-600-PHV (RUBP.435541.001)

Available for Import

Photoelectric Inverter UG-2500-600-PHV for Efficient Energy Conversion

Static Power Converters

Manufacturer: BNK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Photovoltaic inverter UG-2500-600-PHV (RUBP.435541.001-01)

Description

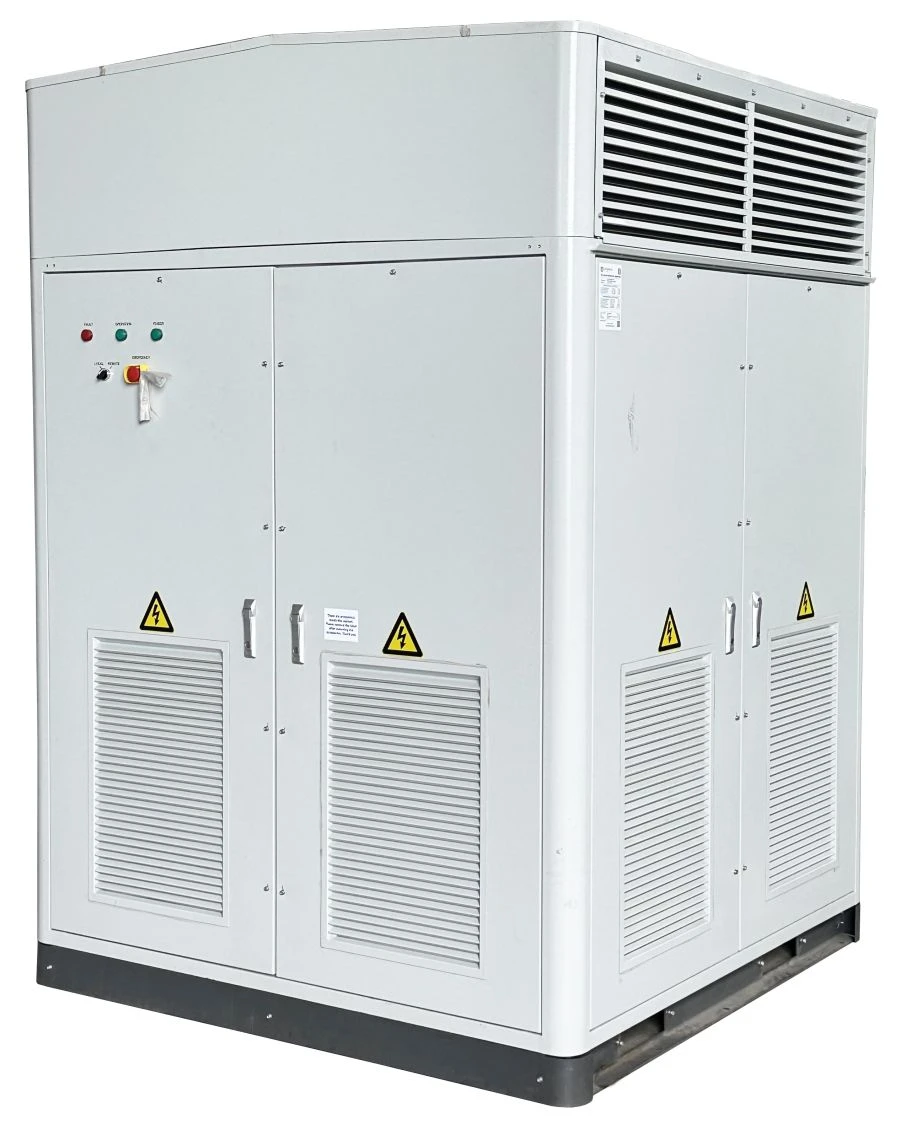

A device that converts direct current into alternating current and back with voltage and frequency changes. The power block of the inverter is made on IGBT modules of imported production. The inverter is designed to work with any type of photovoltaic modules, meets the requirements of modular design and quick installation for large and medium-sized photovoltaic power plants.

It is an electrotechnical device of cabinet design including DC and AC switching devices, protective equipment, power semiconductor keys, ventilation, control systems. It consists of two sections, each of which can operate without the participation of the other section, the main type of operation is joint. According to the method of protection against electric shock it belongs to class I according to GOST R 58698-2019.

It is manufactured in climatic version UHL (from minus 40 to plus 55 degrees Celsius) with placement category 1 (operation in the open air) according to GOST 15150-69 and GOST 15543.1-89.

Specifications

Weight

2700 kg

Height

1770 mm

Depth

2455 mm

Width

1756 mm

Own consumption at night

200 W

Possibility to generate reactive power at night

Got it

Overheating protection

Got it

Cooling type

Forced air

Degree of protection according to GOST 14254

IP55

AC output

Air circuit breakers 2000A

DC input

Isolating switches 2500A and fuses 400A

Efficiency at 100% load

99 %

Power factor

- 0,8 ... +0,8

DC injection rate

> 0,5% In

Value of harmonic distortion in voltage

Less than 3%

Rated mains frequency

SBVVBG

Output voltage range

540...660 V

Rated output voltage

600 V

Rated output current

2406 A

Maximum output current

2646 A

Rated power

2500 kV

Maximum power

2750 kV

Maximum input current

3508 A

Number of DC inputs

Number of independent maximum power points (MPP)

Maximum power point (MPP) adjustment range

850...1450 V

Minimum input voltage

850 V

Maximum input voltage

1500 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
