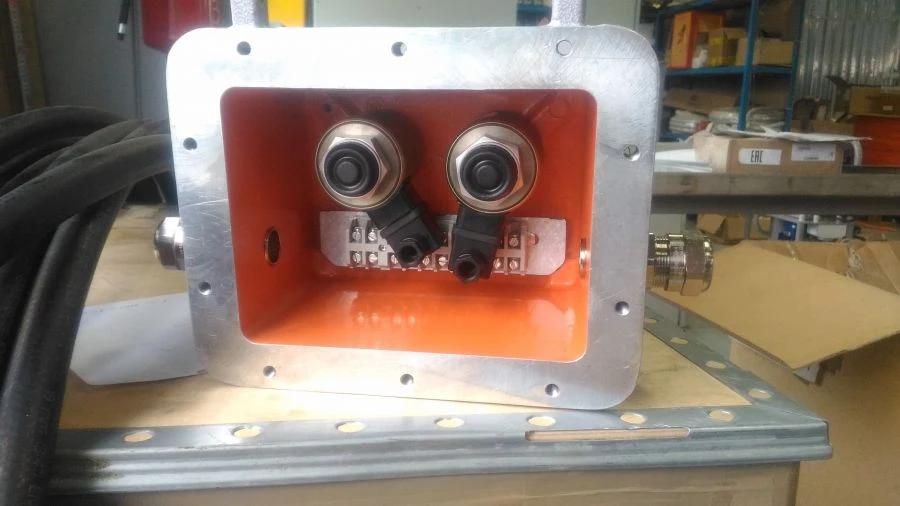

Pneumatic-Electric Control Module for Ball Valves EPMU - Remote and Manual Control

Hydraulic & Pneumatic Regulators

Manufacturer: TECHPROM-NGS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: EPMU is designed for remote and local (manual) control of pneumatic and pneumohydraulic actuator at opening and closing of ball valves DN 150 - 1400 mm. Control pressure of working medium from 0,6 to 16,0 MPa.
Description: EPMU is supplied with compressed air with technical characteristics corresponding to class 5 of GOST 17433 - 80 or purified natural gas according to OST 51.40 - 93.

EPMU is designed for application in potentially explosive zones of class 1 and 2 (GOST 30852.9, GOST IEC 60079-10-1), categories IIA and IIB (GOST 30852.11, GOST IEC 60079-20-1) and temperature classes T1, T2, T3 and T4 (GOST 30852.5, GOST R IEC 60079-20-1).

parameter name/value: -- for EPMU-01; -- for EPMU-10:

Diameter DN of the ball valve, mm: EPMU-01/ 50-100; EPMU-10 150-1400; Supply pressure, MPa: EPMU-01/ 1-10; EPMU-10 0,6-16 ; Valve DN diameter, mm: EPMU-01/ 1; EPMU-107-9; Explosion protection marking: EPMU-01/....

Specifications

Ball valve DN diameter, mm: -- for EPMU-01; -- for EPMU-10

150...1400 mm

Valve diameter DN, mm: -- for EPMU-01; -- for EPMU-10

1 mm

Explosion protection marking:-- for EPMU-01 ; -- for EPMU-10

1ExdIIVT4; 1ExdIIVT4

Pneumatic output signal to open ball valve: -- EPMU-01; -- for EPMU-10:

1 pcs

Pneumatic output signal for ball valve closing: -- for EPMU-01; -- for EPMU-10:

1 pcs

End position signalling: -- for EPMU-01; -- for EPMU-10:

built-in/external; built-in/external

Number of cable glands, pcs: -- for EPMU-01; -- for EPMU-10

3 pcs

Power consumed by one electromagnet at nominal voltage of input signal and ambient temperature (20±5) ?

20 W

Degree of protection against environmental impact according to GOST 14254-96: -- for EPMU-01; -- for EPMU-10:

IP66; IP66

Average service life before decommissioning, years, not less: -- for EPMU-01; -- for EPMU-10:

40 year

Average life, cycles, not less: EPMU-01; -- for EPMU-10:

1x104; 1x104

Weight of the module, kg, not more: -- for EPMU-01; -- for EPMU-10

15 kg

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
