Available for Import

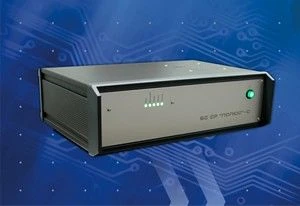

Polar-S Atmospheric Sounding Radio Station Base Station for Continuous Monitoring
Manufacturer:
RADII OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Basic station of the system of radio sounding of the atmosphere "Polyus"-C is designed for round-the-clock operation in stationary, mobile or unified versions, consists of a receiving unit and antenna-feeder system
Specifications
Sensing height
40
Auto tracking range
10 - 250 000 ?
Channel width
8
Step of channel grid
100
Temperature measuring range
-90...50 °C
Tolerance limit of absolute error of temperature measurement
0.6 °C
Relative humidity measuring range
0...100 %
Tolerance limit of absolute error of relative humidity measurement in the range of 10-90 %
5 %
Tolerance limit of absolute error of relative humidity measurement in the ranges 0-10 % and 90-100 %
8 %
Atmospheric pressure measuring range
1100 - 2 hPa
RMS error of atmospheric pressure measurement
1 hPa
Method for measuring atmospheric pressure
Barometric formula, MEMS on separate order
RMS error of height measurement
10 m
RMS error of coordinate measurement in plan view
15 m
Measurement range of average wind speed
0...200
RMS error of measurement of mean wind speed
0.7
Mean wind direction measurement range
0...360
RMS error of measurement of mean wind direction, not more
1.5
View of telemetry signal
Digital
Transmission speed of telemetry information
2400
Telemetry information update period
2
Directional pattern width of the base station antenna in the horizontal plane
360
Directional pattern width of the base station antenna in the vertical plane
170
Power consumption by BS, not more
300 W
Single-phase power supply
220 V, 50 Hz
Receiving frequency range
400.15...406
Weight of operator station equipment, not more
45 kg
Weight of the antenna station equipment, not more
30 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
