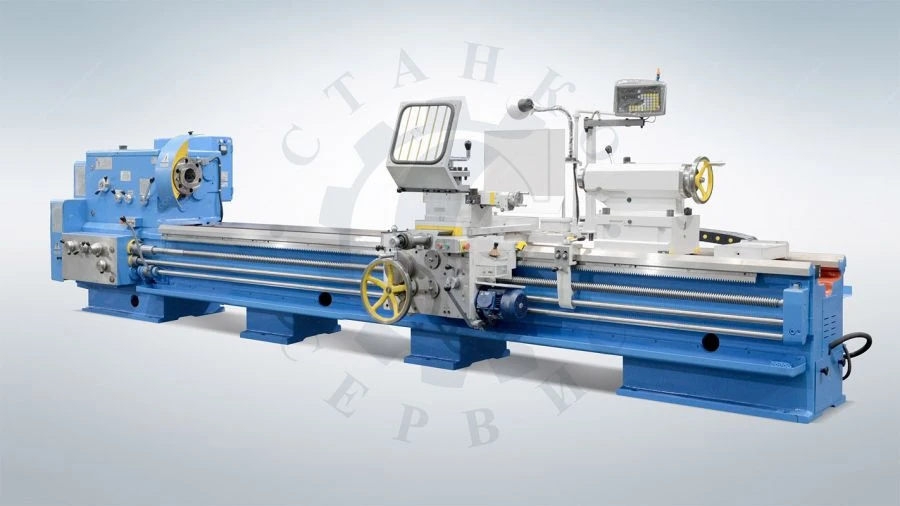

Precision Lathe Machine 16K40F1-8 for Versatile Thread Cutting Applications
Manufacturer:
STANKOSERVIS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The lathe-cutting machine is designed to perform a variety of turning operations, as well as cutting threads: metric, inch, modular and pitch threads.
Specifications
Type of product according to PP RF 616
Turning and screw-cutting machines (universal, with CNC, CNC)
Height
1625 mm
Width
1860 mm
Length
10300 mm
Largest diameter of the workpiece to be mounted above the bed
840 mm
Largest diameter of the workpiece to be machined above the bed
800 mm
Largest diameter of the workpiece to be mounted and machined above the slide
490 mm
Highest cutting force Pz
20000
Digital Display Unit (DDU)
Installed
Roughness of the cylindrical surface of the sample product after its finish machining
Ra 2.5 µm
Accuracy class according to GOST 8-82
?
Machine weight together with electrical equipment
11000 kg
Total power of electric motors installed on the machine tool
19.72 kW
Main motion drive power
18.5 kW
Maximum torque on the headstock spindle
3.0 kNm
Speed of rapid transverse movements of the slide
2000 mm/min
Speed of rapid longitudinal movements of the caliper
5200 mm/min
Step limits for machinable pitch threads
112-0.5 pitch diametral
Step limits for machinable modular threads
0.25-56 module
Step limits for machinable inch threads
28-0.25 threads per 1 inch.
Step limits for machinable metric threads
1...224 mm
Spindle speed limits
10...1250
Longest longitudinal length of the slide stroke
7850 mm
Longest workpiece length
8000 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
