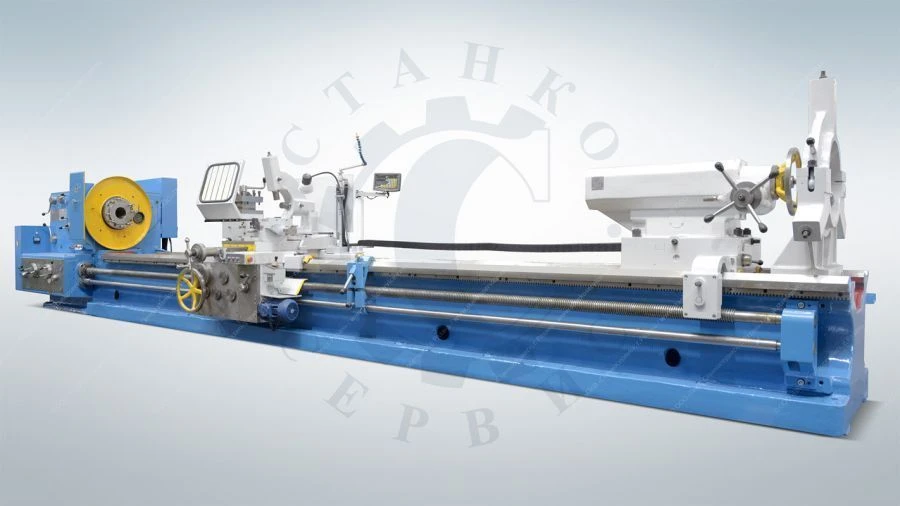

Precision Lathe Machine for Turning and Threading - Model 1Н65Ф1-16

Manual Metal Lathes

Manufacturer:STANKOSERVIS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Turning and screw-cutting machine 1N65F1-12 Turning and screw-cutting machine 1N65F1-10

Description

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Height

1880 mm

Width

2320 mm

Length

19410 mm

Machine weight

28 t

Roughness of the cylindrical surface of the sample product after its finish machining

Ra 2.5 µm

Accuracy class of machine tools according to GOST 8-82

Main motion drive power

30 kW

Highest cutting force Pz

41000

Highest torque on the spindle

9.5 kNm

Speed of rapid transverse movements of the slide

1000 mm/min

Speed of rapid longitudinal movements of the caliper

3000 mm/min

Step limits for machinable modular threads

0.5-24 module

Pitch limits of inch threads to be cut

24-1/4 threads per 1 inch

Step limits of metric threads to be cut

1...96 mm

Maximum lateral movement of the slide

700 mm

Maximum longitudinal movement of the slide

15600 mm

Diameter of the cylindrical bore in the spindle

128 mm

Largest diameter of the workpiece to be mounted above the bed

1000 mm

Largest diameter of the workpiece to be machined above the bed

1000 mm

Longest workpiece length

16000 mm

Total power of electric motors installed on the machine tool

24.96 kW

Digital display device

Installed

Spindle speed limits

5...500

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
