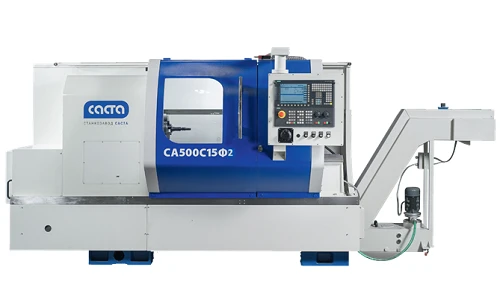

Precision Lathe Machine with Control System SA500C15F2 for Advanced Machining

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

- Maximum balanced machine with very robust construction.
The possibility of upgrading the operational control system (OCS) to a full Fanuc CNC system without additional installation work, by entering the service code.
Rigid cast iron bed, artificially aged to relieve internal stresses, ensures long term stability of the machine's geometric accuracy.
Wide prismatic and flat slideways, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, are highly wear-resistant.
The surfaces of the travelling units (carriage, tailstock) are scraped and coated with a special anti-friction coating for minimum wear and friction-free travelling.
All-metal spindle is assembled on high-precision angular-contact bearings (one twin in front and one in the rear), has reduced runout in axial and radial direction even under heavy cutting conditions.
Modern operational control system based on Fanuc 0i

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Length

3877 mm

Height

2170 mm

Weight

2800 kg

Width (without remote control)

1620 mm

Width (with remote control)

2220 mm

The largest diameter of the workpiece, to be mounted above the bed

500 mm

The largest diameter of the workpiece, to be machined above the slide

290 mm

Movement in the X axis (transverse movement of the slide)

278 mm

Z-axis travel (longitudinal movement of the slide)

1446 mm

Maximum speed spindle speed

3500

Maximum spindle torque

688/848

Main engine power

15/18.5 kW

Speed control

Stepless, 2 ranges

Diameter of the spindle bore for the bar

55 mm

Spindle end

Attachment of the turret tool

VDI40

Number of tool slots

8 (4* optional)

Moving the tailstock quill

200 mm

Diameter of tailstock quill

100 mm

Tailstock quill taper

Morse 5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
