Available for Import

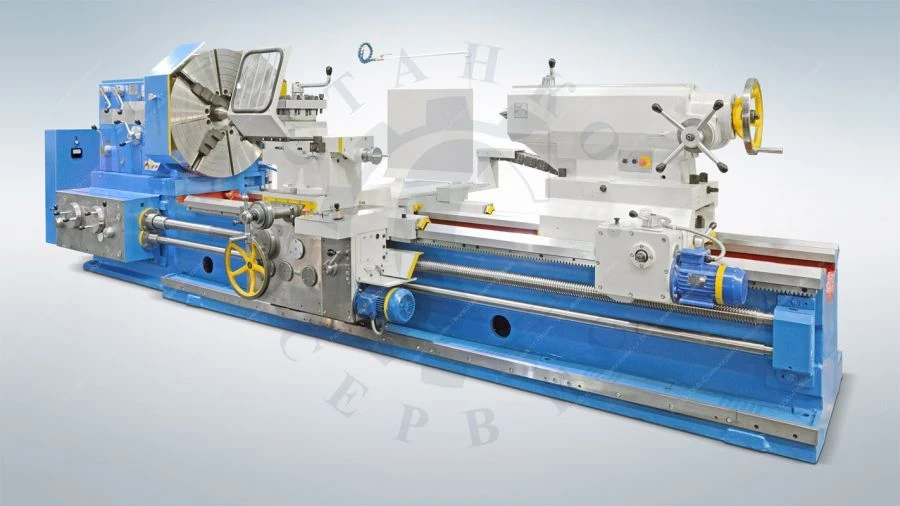

Precision Turning and Thread Cutting Lathe RTS117-3 for Versatile Machining
Manufacturer:
STANKOSERVIS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch
Specifications
Type of product according to PP RF 616
Universal lathes and screw-cutting machines, with CNC, CNC)
Height
2000 mm
Width
2200 mm
Length
6140 mm
Roughness of the cylindrical surface of the sample product after its finish machining
Ra 2.5 µm
Accuracy class of machine tools according to GOST 8-82
?
Height of the tool to be mounted
SBVVBG mm
Machine weight
13 t
Main motion drive power
22 kW
Highest cutting force Pz
41000
Highest torque on the spindle
9.5 kNm
Speed of rapid longitudinal movements of the caliper
3000
Pitch limits of modular threads to be cut
0.5-24 module
Pitch limits of inch threads to be cut
24-1/4 threads per 1 inch
Step limits of metric threads to be cut
1...96 mm
Maximum lateral movement of the slide
700 mm
Maximum longitudinal movement of the slide
2700 mm
Diameter of the cylindrical bore in the spindle
128 mm
Largest diameter of the workpiece to be mounted above the bed
1200 mm
Largest diameter of the workpiece to be machined above the bed
1140 mm
Largest diameter of the workpiece to be mounted and machined above the slide
900 mm
Longest workpiece length
3000 mm
Spindle speed limits
5...500
Speed of rapid transverse movements of the slide
1000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
