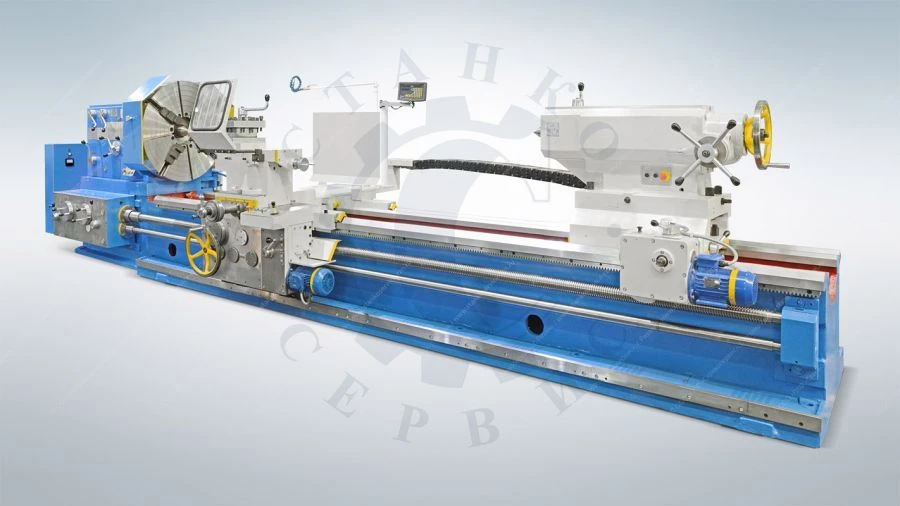

Precision Turning and Thread Cutting Lathe RTS117F1-6 for Versatile Applications

Manual Metal Lathes

Manufacturer: STANKOSERVIS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Rotary screw-cutting lathe RTS117F1-5

Description

The machine is designed for production of all turning operations, including taper turning and thread cutting - metric, modular, inch

Specifications

Type of product according to PP RF 616

Universal lathes and screw-cutting machines, with CNC, CNC)

Height

2000 mm

Width

2200 mm

Length

9210 mm

Roughness of the cylindrical surface of the sample product after its finish machining

Ra 2.5 µm

Accuracy class of machine tools according to GOST 8-82

Height of the tool to be mounted

SBVVBG mm

Machine weight

17.5 t

Main motion drive power

22 kW

Highest cutting force Pz

41000

Highest torque on the spindle

9.5 kNm

Speed of rapid transverse movements of the slide

1000 mm/min

Speed of rapid longitudinal movements of the caliper

3000 mm/min

Pitch limits of modular threads to be cut

0.5-24 module

Pitch limits of inch threads to be cut

24-1/4 threads per 1 inch

Step limits of metric threads to be cut

1...96 mm

Maximum lateral movement of the slide

700 mm

Maximum longitudinal movement of the slide

5600 mm

Diameter of the cylindrical bore in the spindle

128 mm

Largest diameter of the workpiece to be mounted above the bed

1200 mm

Largest diameter of the workpiece to be machined above the bed

1140 mm

Largest diameter of the workpiece to be mounted and machined above the slide

900 mm

Longest workpiece length

6000 mm

Spindle speed limits

5...500

Digital display device

Installed

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
