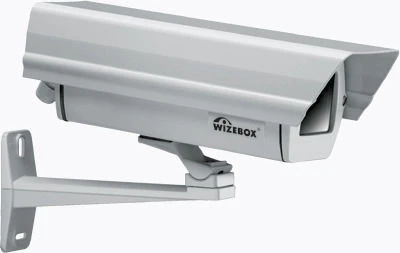

Protective Thermal Cover EL210 for Cameras - Ideal for Harsh Environments

Radio Equipment Parts

Manufacturer: SAROVINTECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Thermal cover ELS210-24V Thermal cover ELS210 Thermal cover EL210-24V Thermal cover EL210-12V Thermal housing E210

Description

Protects the camera with fixed or variable lens from unfavourable environmental influences.Thermal housing type: GERMO.Series: 210. Diameter of cables for connection of the hermetic housing 4-8 mm.Weight of the complete hermetic housing 1,4 kg. Maximum load on the bracket 25kg with a safety factor of 2.6.

Coating powder paint, polyester, colour: light grey (RAL7035). Body material extruded aluminium; die-cast aluminium. Special polished glass, without optical distortion.

Fasteners galvanised steel. Material of sealing gaskets polypropylene foam. Material of cable glands polyamide.

Specifications

Input voltage supplied to the enclosure

220 V

Dimensions of usable volume

175x65x50mm

Housing material

Extruded aluminum

Environmental protection class

IP66

Operating temperature range

-10...40 °C
