R50 Type Switch for 1435 mm Gauge, Model 1/11, Project 2642.00.000-50

Available for Import

R50 Type Switch for 1435 mm Gauge - Efficient Track Switching Solutions

Wide Gauge Track Switches

Manufacturer: NSZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

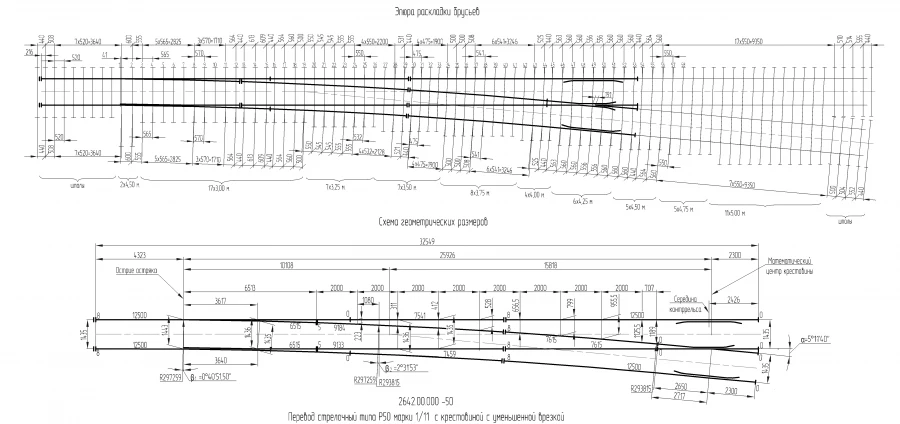

P50 type 1/11 gauge 1,435 mm track type switch of the project 2642.00.000-51

Description

Designed for transfer of rolling stock from one track to another. Design features: switches: rotary shank with liner-overlay fastening of the root; pads with pads on riveted connection; crossbars: prefabricated crossbar with rail whiskers and cast core of high-manganese steel with liner-overlay ending of the rear outreach; counter-rail from SP850 corner

Specifications

Cross type by angle

Spicy

View

Single

Type of single transfer

Ordinary

Arrow design

With rotating sharps

Cross brand

1/11

Rail type

?50

View in the direction of a side or crossing track

Right

Cross type by construction

Team

Type of product according to PP RF 616

Track equipment and devices and their parts

Type of timber

wooden

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
