Reinforced Wall-Mounted Distribution Cabinet SHRN-6U-450M for Telecommunications

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

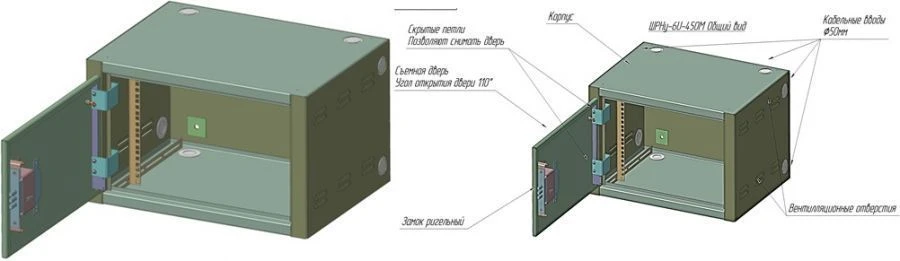

ShRNu-6U-450M. Wall-mounted distribution cabinet reinforced, size 19" - 6U, overall dimensions ????????= 600?370?450. The product is a wall-mounted vandal-proof telecommunication cabinet designed to accommodate active telecommunication equipment or in-house technical means of security systems, control and management of engineering equipment and resource consumption metering.

The product is located in entrances of houses, other technical and non-residential premises of small area. The cabinet door has concealed hinges with no access to the hinge elements from the outside and impossibility to remove the door from the hinges by "pushing". Rigel lock with 3-point locking.

The construction of the cabinet door has a removable design.

Specifications

Type of accommodation

indoor hinged

Height, U

Operating temperature range

0...40 °C

Device type

Reinforced wall-mounted distribution cabinet

Height/story (unit)

Form factor (rack-mounted, freestanding)

freestanding

Depth

450 mm

Protection class

IP31

Weight

25 kg

Height

370 mm

Width

600 mm

Availability of fasteners to the support (pole)

Armoured glass

Type of accommodation

In the room for surface mounting

Type of construction

All-welded

Height , U

Usable depth

450 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Upper limit of operating temperature

40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
