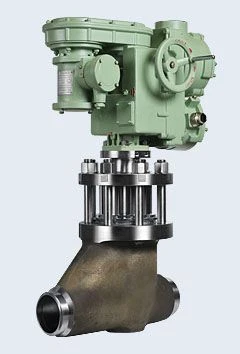

Safety Bellows Shut-off Valve ZT26364 DN 100 for Critical Systems

Nuclear Power Valves

Manufacturer:Znamia Truda OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Shut-off bellows valve ZT26364 DN 50 Bellows shut-off valve ZT26364 DN 15 Shut-off bellows valve ZT26364 DN 32 Bellows shut-off valve ZT26364 DN 25 Shut-off bellows valve ZT26364 DN 65

Bellows shut-off valve ZT26364 DN 20 Bellows shut-off valve ZT26364 DN 150 Bellows shut-off valve ZT266364 DN 10 Bellows shut-off valve ZT26364 DN 125 Bellows shut-off valve ZT26364 DN 80

Description

Applied for installation as shut-off devices on pipelines of nuclear power plants in systems important for safety, including safety systems.

They are supplied domestically and for export, including countries with tropical climates..

Specifications

Operating medium

stainless steel valves - all media according to np-068-05, except slurry; carbon steel valves - make-up water, oil, nitrogen, steam, steam generator feed water, feed water, condensate, radioactive gases

Airtightness class

in accordance with GOST 9544

Pressure, Rp

pp 1.0 mpa (10 kgf/cm²), 1.6 mpa (16 kgf/cm²), 2.5 mpa (25 kgf/cm²)

Operating medium temperature

up to 250 °C

Pipeline connection

Welded

Housing material

08x18n10t, steel 20

Valve control

manual (handwheel, gearbox), electric actuator, remote (articulated coupling)

Setting position

any, valves with electric actuator - any in the upper hemisphere relative to the horizontal plane, recommended position - vertical

Media flow direction

any

Classification designation of the valve

2viiiw, 2viiiw and 3ciiiw per np-068-05

Seismic resistance category

i by np-031-01

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
