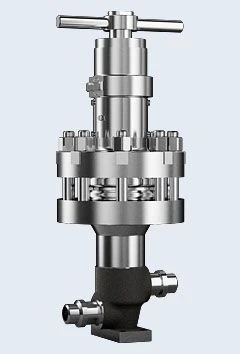

Available for ImportSealing Bellows Valve for Nuclear Power Plants ZT26370 - Reliable Flow Control
Manufacturer:Znamia Truda OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for installation on pipelines of nuclear power plants (NPP), including safety systems.
They are supplied domestically and for export, including to countries with tropical climates..
They are supplied domestically and for export, including to countries with tropical climates..
Specifications
Operating medium
stainless steel valves - all media according to np-068-05, except slurry; carbon steel valves - make-up water, oil, nitrogen, steam, steam generator feed water, feed water, condensate, radioactive gases
Airtightness class
in accordance with GOST 9544
Pressure, Rp
pp 9.2 to 20.0 mpa (92 to 200 kgf/cm²)
Operating medium temperature
up to 350 °C
Pipeline connection
Welded
Housing material
08x18n10t, steel 20
Valve control
manual (handwheel, gearbox), electric actuator, remote (articulated coupling)
Setting position
any, valves with electric actuator - any in the upper hemisphere relative to the horizontal plane, recommended position - vertical.
Media flow direction
any
Classification designation of the valve
2viiiA, 2viiiA and 3ciiiA per np-068-05
Seismic resistance category
i by np-031-01
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
