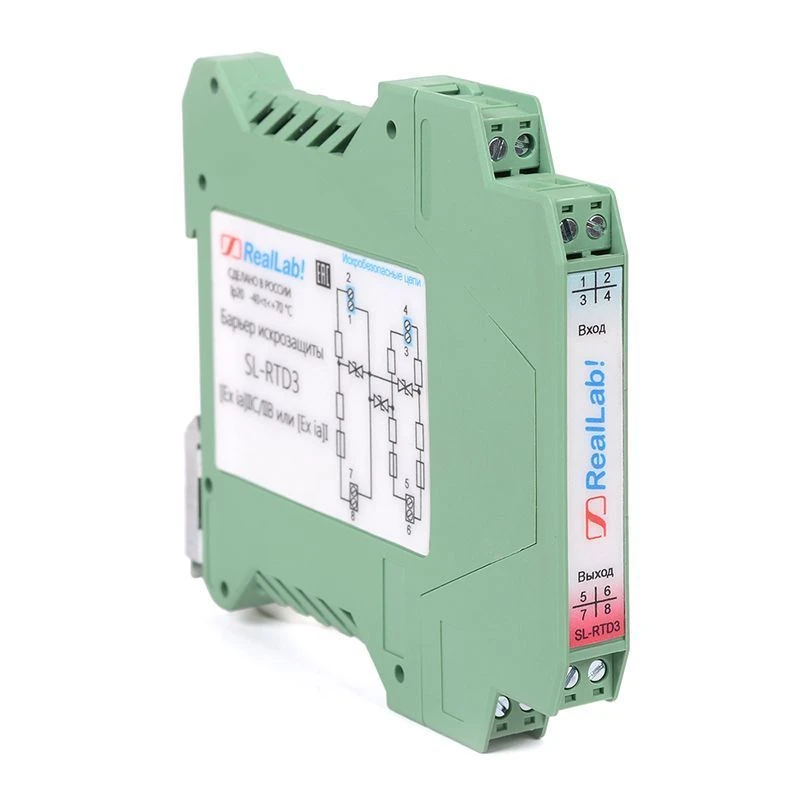

Signal Isolation Barrier for Resistance Temperature Sensors SL-RTD3 - Ensuring Safe Signal Transmission

Purpose: intrinsically safe signal transmission from thermal resistance converters Type of intrinsic barrier: passive Type of signal/sensor: resistance thermometers Number of sensors to be connected: 1 Signal parameters or connection method: three-wire connection scheme Signal range: for TC 100M and 100P polling current not more than 2 mA Maximum pass resistance of one branch: 120 Ohm Upper limit of signal range: 5 V / 5 mA Rated fuse current: 50 mA Explosion protection marking: [Ex ia] IIC/IIB/I Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75 Operating temperature range: -40°C to +70°C Average MTBF: 100000 hrs. Average service life, not less than 12 years Overall dimensions (HxWxH): 99x12,5x114,5 Mounting: on DIN-rail Degree of protection: IR20 according to GOST 14254-2015 Warranty: 36 months
