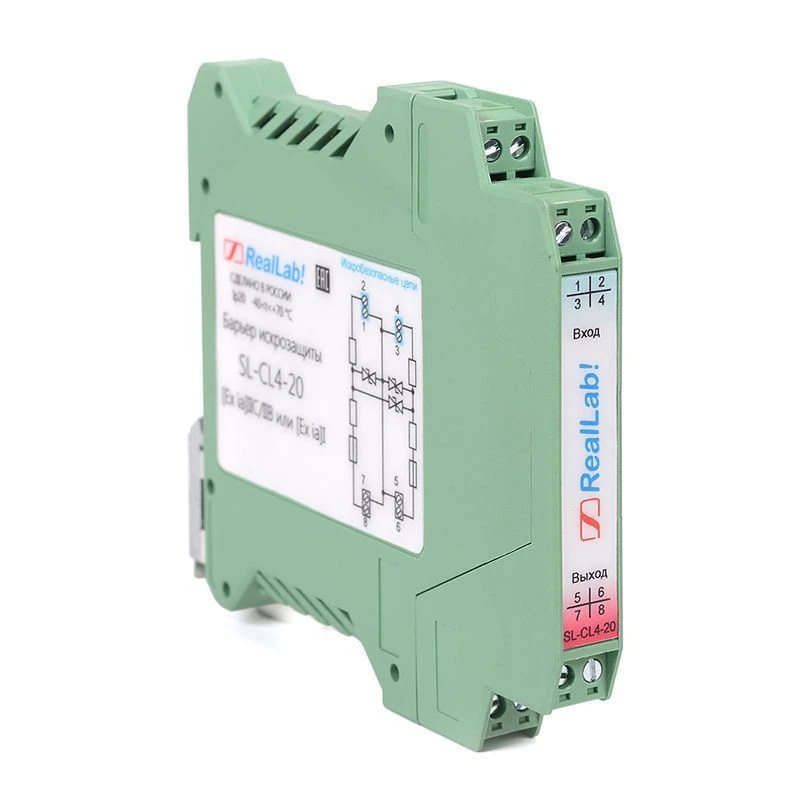

Spark Protection Barrier for 4-20 mA Signal Transmission - SL-CL4-20

Digital Signal Converters

Manufacturer: NIL AP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: intrinsically safe current signal transmission Intrinsic barrier type: passive Signal type/sensor: current output signal Number of sensors to be connected: 1 HART-transparentHART-transparent Signal parameters or connection method: current loop Signal range: 0-20 mA Max. pass resistance of one branch: 300 Ohm Upper limit of signal range: 24 V / 20 mA Rated fuse current: 50 mA Explosion protection marking: [Ex ia] IIC/IIB/I Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75 Operating temperature range: -40°C to +70°C Average MTBF: 100000 hrs. Average service life, not less than 12 years Overall dimensions (HxWxH): 99x12,5x114,5 Mounting: on DIN-rail Degree of protection: IR20 according to GOST 14254-2015 Warranty: 36 months

Specifications

Overall dimensions (HxWxH):

99x12.5x114.5. mm

Weight, not more:

100 year

Average service life, at least

B1/B8 2100/900 MHz year

Average MTBF:

100000

Guarantee:

NZ-150-14,5

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing
