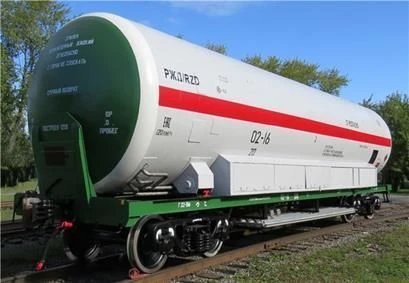

Special Tank Car for LNG and Ethylene 15-5106 for Safe Transport
Manufacturer:
Uralcryomash OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The tank wagon model 15-5106 has an enlarged boiler and is designed for the carriage and storage of liquefied natural gas (LNG) and ethylene, transported in general purpose railway trains.
Specifications
Type of product according to PP RF 616
Tank cars
Name
?????-????????
Assignment
for spg and ethylene
Designation
15-5106
Tare weight
40.45?
Base
- capacity 10000mm; - trolley 1850mm
Tank capacity
65.4?3
Drainage-free storage time
(at pressure rise from 0.05 mpa to 0.5 mpa) 42 (85)days
Pressure in the isolation space
during operation (in warm condition), 1.33 (1x10-2) pa (mmHg)
Vessel pressure
(working) 0.5 (5.1) mpa (kgf/cm2); (test without taking into account vacuum in the heat-insulating cavity) 1.1 (11.22) mpa (kgf/cm2); (test in the presence of vacuum in the heat-insulating cavity) 1.0 (10.2) mpa (kgf/cm2)
Length
- along the coupling axes of couplers 15090mm; - along the frame end beams 13870mm; - capacity 14144mm
Permissible vessel wall temperature
-196 to +70°c
Design speed
120km/h.
Weight of product to be poured
23.56t, (31.66t)
Product losses from evaporation
(at stationary storage reduced to temperature: t=306k (33os) and p=0.1 mpa (760mmHg)) 0.417 (0.227) % per day
Design static load
(from wheelset to rails maximum) 230.3 (23.5) kn (tf)
Cart
biaxial 18-100, type 2
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
