Available for Import

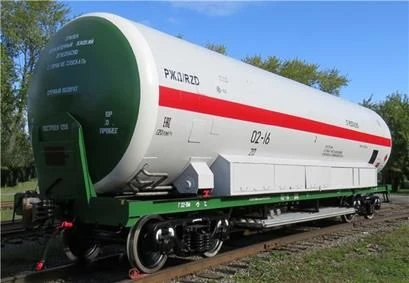

Special Tank Car for LNG and Ethylene 40.45T Model 15-5106 - Ideal for Safe Transport

Rail Tank Wagons

Manufacturer: Uralcryomash OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

This rail tank wagons is manufactured in Russia and is available for import to global markets. Russian-made products are known for their durability, reliability, and excellent price-to-performance ratio.

For detailed product specifications, please see the Specifications tab. Contact our team to request pricing, availability, and shipping information.

Specifications

Assignment

for spg and ethylene

Designation

15-5106

Base

- capacity 10000mm; - trolley 1850mm

Tank capacity

65.4?3

Drainage-free storage time

(at pressure rise from 0.05 mpa to 0.5 mpa) 42 (85)days

Pressure in the isolation space

during operation (in warm condition), 1.33 (1x10-2) pa (mmHg)

Vessel pressure

(working) 0.5 (5.1) mpa (kgf/cm2); (test without taking into account vacuum in the heat-insulating cavity) 1.1 (11.22) mpa (kgf/cm2); (test in the presence of vacuum in the heat-insulating cavity) 1.0 (10.2) mpa (kgf/cm2)

Length

- along the coupling axes of couplers 15090mm; - along the frame end beams 13870mm; - capacity 14144mm

Permissible vessel wall temperature

-196 to +70°c

Design speed

120km/h.

Weight of product to be poured

23.56t, (31.66t)

Tare weight

40.45?

Product losses from evaporation

(at stationary storage reduced to temperature: t=306k (33os) and p=0.1 mpa (760mmHg)) 0.417 (0.227) % per day

Design static load

(from wheelset to rails maximum) 230.3 (23.5) kn (tf)

Cart

biaxial 18-100, type 2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
