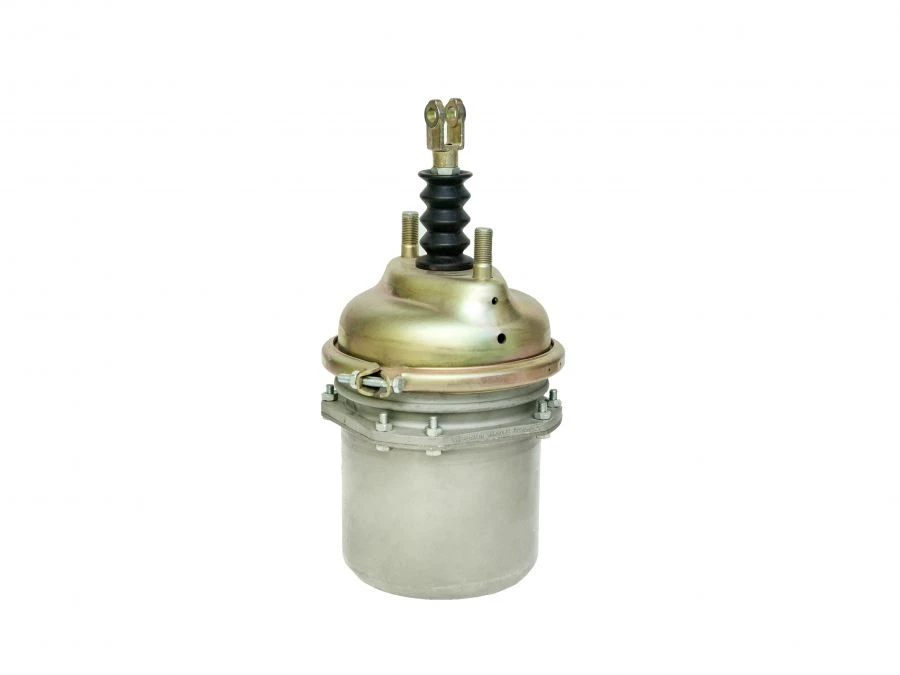

Spring Brake Chamber Type 30/24 25.3519301-50

Available for Import

Spring Brake Chamber Type 30/24 for Efficient Braking Applications

Pneumatic Brake Chambers

Manufacturer:ROSSLAVL BRAKE SYSTEMS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Brake chamber with spring energy accumulator is designed to actuate braking mechanisms of service, reserve and parking brakes. The spring energy accumulator is equipped with an integrated by-pass drain valve.

Specifications

Equipment

Brake chamber - 1 pc. Transport plug - 2 pcs. Passport- 1 pc. Packing- 1 pc.

Stem outreach L

58 mm

Bolt spacing A

120 mm

Diameter of the connection hole in the plug d1

14 mm

Width of fork slot B

14.2 mm

Connection thread of the mounting bolts d2

16 mm

Outreach of mounting bolts l

34 mm

Air inlet connection thread D

16 mm

Clamp installation angle ?°

Diaphragm stroke

71...75 mm

Spring travel of the energy accumulator

64...67 mm

Center distance of the air inlet connections

56 mm

Mechanical brake release unit screw key size

26.67...27 mm

Working pressure

1 MPa

Spring-loaded energy accumulator tripping pressure

0.48...0.54 MPa

Installing the brake chamber

In accordance with the vehicle manufacturer's documentation

Maintenance of the brake chamber

In accordance with the operating manual of the motor vehicle for which the product is intended to be used

Safety measures

Repairs without special equipment are not permissible. For assembly work, be aware of the inscription on the flange of the spring energy accumulator "CAUTION! SPRING IS UNDER TENSION".

Certificate of Conformity

NO. EAES RU C-RU.MT14.V.00124/19

Storage conditions

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Manufacturer's warranty

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Disposal information

The procedure for disposal of the product shall be determined by the Consumer.

Angle of turning of air inlet leads ?°, deg.

180

Weight

11.6 kg
