Spring Energy Accumulator Brake Chamber Type 24/24 100-3519200-40

Available for Import

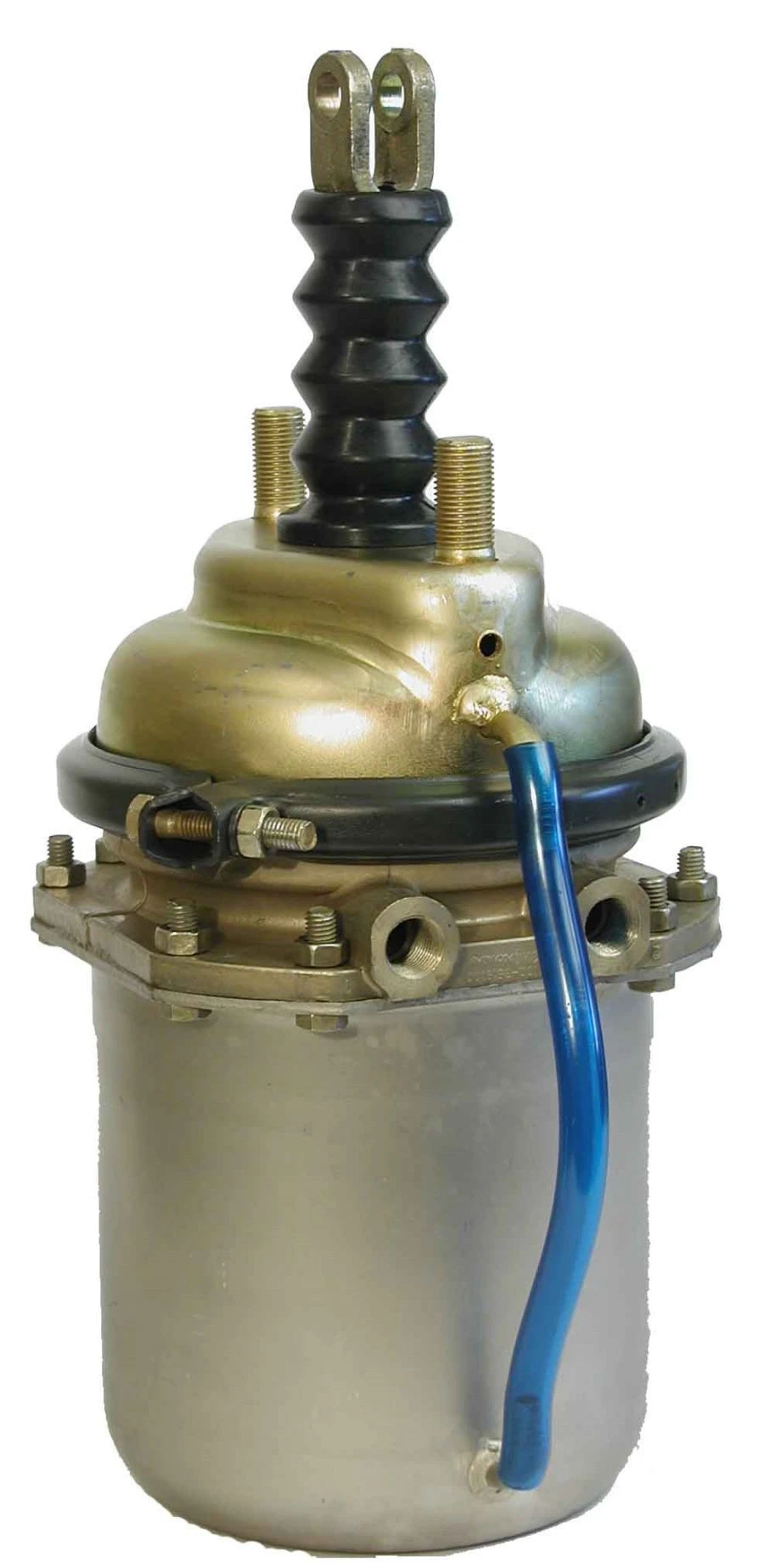

Spring Energy Accumulator Brake Chamber Type 24/24 for Reliable Braking Systems

Pneumatic Brake Chambers

Manufacturer: ROSSLAVL BRAKE SYSTEMS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Brake chamber with spring energy accumulator type 24/24 100-3519200

Description

Brake chamber with spring energy accumulator is designed to actuate braking mechanisms of service, reserve and parking brakes.

Specifications

Assignment

Brake chamber with spring energy accumulator is designed to actuate braking mechanisms of service, reserve and parking brakes.

Equipment

Brake chamber - 1 pc. Transport plug - 2 pcs. Passport- 1 pc. Packing- 1 pc.

Weight

10.38 kg

Angle of turning of air inlet leads ?°, deg.

Flat grinder, Specialised grinder

Disposal information

The procedure for disposal of the product shall be determined by the Consumer.

Manufacturer's warranty

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Storage conditions

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Certificate of Conformity

NO. EAES RU C-RU.MT14.V.00124/19

Maintenance of the brake chamber

In accordance with the operating manual of the motor vehicle for which the product is intended to be used

Spring-loaded energy accumulator tripping pressure

0.48...0.54 MPa

Working pressure

0.8 MPa

Mechanical brake release unit screw key size

26.67...27 mm

Center distance of the air inlet connections

56 mm

Spring travel of the energy accumulator

67 mm

Diaphragm stroke

57 mm

Air inlet connection thread D

16 mm

Outreach of mounting bolts l

40 mm

Connection thread of the mounting bolts d2

16 mm

Width of fork slot B

12.5 mm

Diameter of the connection hole in the plug d1

B1/B8 2100/900 MHz mm

Bolt spacing A

120 mm

Stem outreach L

58 mm

Clamp installation angle

320...330

Installing the brake chamber

In accordance with the vehicle manufacturer's documentation

Safety measures

Repairs without special equipment are not permissible. For assembly work, be aware of the inscription on the flange of the spring energy accumulator "CAUTION! SPRING IS UNDER TENSION".

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
