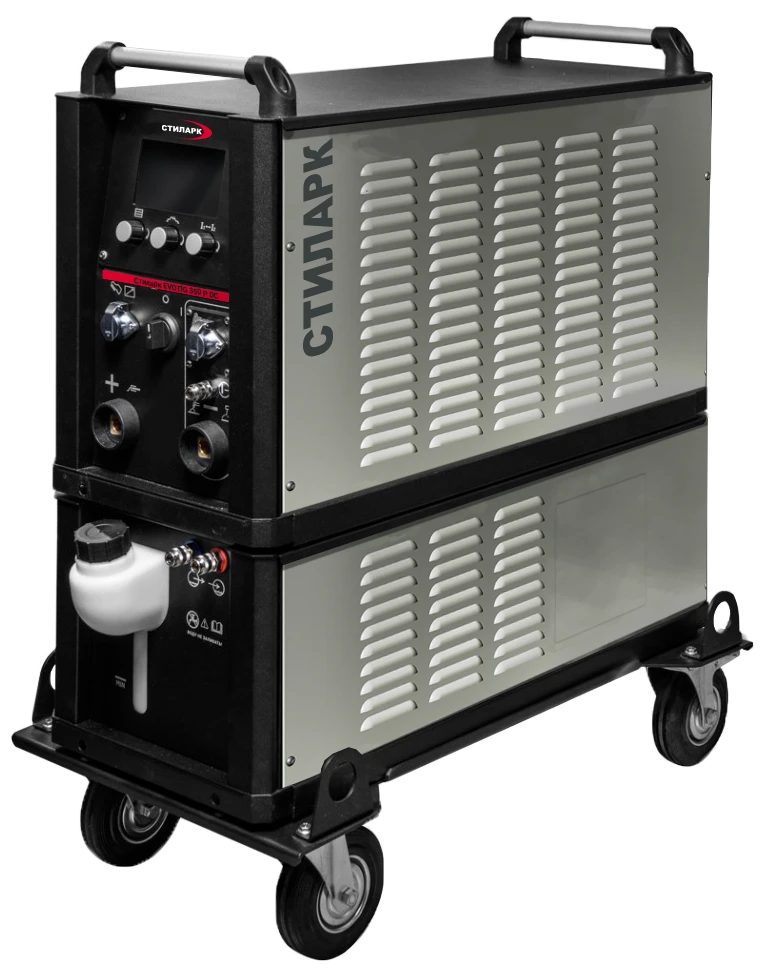

STILARK EVOTIG 350 P DC Argon Arc Welding Machine for Industrial Applications

Electric Welding Machines

Manufacturer:ZTI LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Industrial inverter welding machine with digital control and software welding parameters STYLARC EVOTIG 350 P DC is designed for direct current argon-arc welding of steels, titanium, copper-containing alloys at currents up to 300 A inclusive in 100% argon. The model supports all types of pulse welding, high-frequency modulated welding, various control algorithms, contact/non-contact ignition and so on.

The device has a modular design of the power part and provides: IP34 dust and water resistance class, 100% PV at maximum current in the temperature range -40...+40° C, 96% efficiency. The control cycle of welding arc parameters is 6.6 µs.

The machine has the ability to remotely monitor and document welding parameters [WeldWeb]..

Specifications

Type of product according to PP RF 616

Arc welding equipment;

Minimum welding current

3 A

Rated welding current

300 A

Operating voltage

380 V

Weight

43.4 kg

Mains frequency

50...60

Manual arc welding

20-300 ?

argon-arc welding

3-300 ?

No-load voltage

93...97 V

Maximum power consumption, kW

Length

740 mm

Width

300 mm

Dimensions

740x300x460 mm

Mark

stylark

Equipment

power source, autotig cold wire feeder, liquid cooling unit for bjo tig torch, cylinder cart, welding torch, ground cable, cable package, weld web remote parameter control system.

Load Duration (LL)

100 %

Type of welding voltage regulation

unregulated

AC mains supply voltage

300...500 V

Type of welding current

permanent

Maximum welding current

300 A

Height

460 mm

Operating modes (continuous/pulse)

pulsed and short-pulsed

Current intensity at 100% SP

300 A

EFFICIENCY

95 %

Cos f

0,99

Degree of protection

ip 23

Insulation class

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
