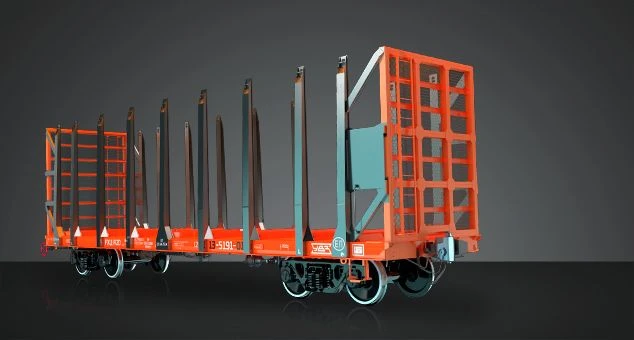

Timber and Pipe Transport Flat Car Model 13-5191-01 for Efficient Logistics

Rail Flatbed Wagons

Manufacturer: URALVAGONZAVOD OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The flatcar is designed for transporting timber and sawn timber from 1.6 to 13 m long, pipes up to 13 m long with diameter from 426 to 1420 mm. Wagon-platform model 13-5191-01 also provides carriage of large-capacity containers of sizes 1AAA, 1AA, 1A, 1AX, 1CC, 1C, 1CX according to GOST R 53350 and specialised containers of 20 ft and 40 ft length, including those with maximum gross weight of 36 tonnes.

The platform is designed for freight traffic on the 1520 mm gauge railways of the Russian Federation (except for the following sections: Belorechenskaya-Tuapse-Veseloye; Krymskaya-Novorossiysk; Chum-Labytnangi; Tigey-Achinsk), as well as other member states of the Commonwealth of Independent States, Georgia, the Republic of Latvia, the Republic of Lithuania, the Republic of Estonia, China, Mongolia, Finland, on which the operation of freight wagons in the 1-Ta gauge is permitted.

The platform is manufactured in the version UHL category 1 according to GOST 15150 with ensuring operational reliability in the range of....

Specifications

Type of product according to PP RF 616

Railroad type flat cars

Lifting capacity, tonnes, not more

74 t

Number of axles

4 pcs

Car length along the coupling axes of couplers

14620+33-20 mm

Frame length at end beams

13400±5 mm

Body volume

130

Number of tilting stops

8 pcs

Model of two-axle cart

18-194-1

Track width

1520 mm

Dimension according to GOST 9238

1-Ta

Design static axial load, kN (tf)

245 (25)

Static linear load, kN/m (tf/m)

67,1 (6,84)

Design speed

120

Minimum curve radius for passing a single wagon

60 m

Minimum radius of the curve traversed by a car in coupling

80 m

Type of coupling

CA-3

Distance from rail head level to coupling axis during construction

1040...1080 mm

Distance from the level of the rail head to the coupling axis in operation

- For empty platform, mm, not less than 980; - For empty platform, mm, not more than 1080; - For loaded platform, mm, not less than 950.

Tare weight

25.5 t

Minimum permissible tare weight in operation

23.6 t

Maximum tare factor

0.35

Wagon base

9720 mm

Wagon height

4698 mm

Car width

3236 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
