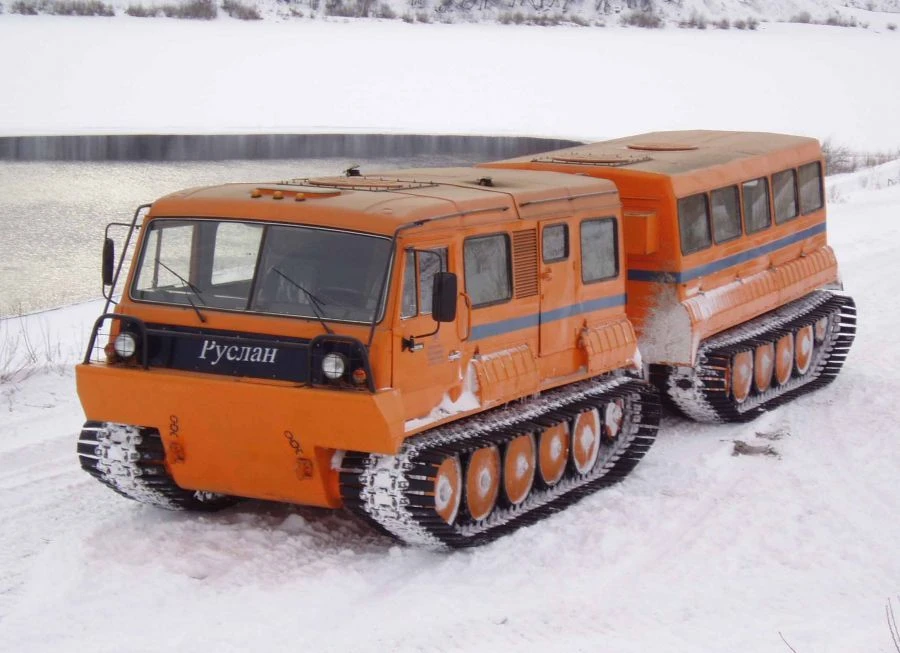

TTM 4902PS All-Terrain Amphibious Vehicle - Passenger Model

TTM 4902PS All-Terrain Amphibious Vehicle for Passenger Transport

Manufacturer: TRANSPORT LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

TTM 4902PS (passenger) is a floating all-terrain vehicle with both sections driving (with the possibility of blocking all tracks). Hydraulic drive of links rotation around its own axis and folding of links in two planes, provides unique cross-country ability and allows climbing steep banks, rafts, overcoming ditches and ravines, travelling through bogs of any complexity. The vehicle is made according to the modular scheme: the front link - power module - cabin combined with an isolated engine compartment in a single volume, the rear link - passenger module.The TTM 4902PS snowmobile is designed for transporting maintenance personnel and repair crews in off-road conditions, including snowfields (without limiting the depth of snow cover), loose sands and swamps of all types with overcoming small water obstacles afloat.

Specifications

Type of product according to PP RF 616
Snowmobile means of transportation
Mark
TTM 4902PS
Fuel tank
760 l
Maximum roll angle on dry sodden ground, degrees
25
Cab capacity
6
Maximum afloat speed
5
Maximum highway speed (on land)
55
Model
TTM 4902PS
Power
320 hp
Curb weight
14.3 t
Payload
3.5 t
Range (by fuel)
500
Ambient temperature
40...45 °C
Maximum angle of ascent on dry sodden ground with full load, deg.
30
Ground clearance
400 mm
Minimum turning radius
10 m
Overall dimensions, height
2700 mm
Overall dimensions, width on tracks with extensions
2940 mm
Overall dimensions, length
11570 mm
Number of sleepers in both links
9
Full passenger capacity in two links
22
Average specific pressure on the ground
0.02 MPa
Caterpillar
760 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
