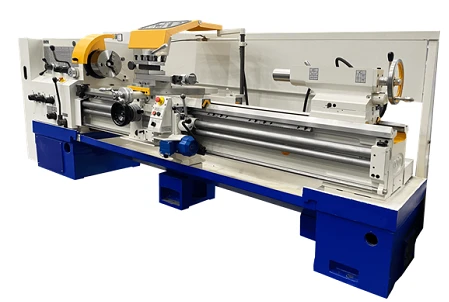

Universal Lathe Machine CA600C200 for Precision Turning and Thread Cutting
Manufacturer:
SASTA PJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
- - Universal turning and screw-cutting machine CA600C200 - is an easy-to-use lathe of classical layout, designed for turning operations, trimming ends, threading, as well as drilling at the stop.
- The machine bed is made of high quality cast iron, with transverse ribs, providing greater rigidity. It is mounted on solid cast iron bollards. The bed has two hardened carriage guides (one prismatic and one flat) and two tailstock guides (one prismatic and one flat).
- On request it is possible to make a version with a recess in the bed (GAP).
- Inside the bed there are sloping hatches for chip and coolant drainage.
Specifications
Type of product according to PP RF 616
Turning and screw-cutting machines (universal, with CNC, CNC)
Length
3880 mm
Width
1265 mm
Height
1610 mm
Weight
3500 kg
The largest diameter of the workpiece,
to be mounted above the bed
550 mm
The largest diameter of the workpiece,
to be machined above the slide
340 mm
Movement in the X axis
(transverse movement of the slide)
275 mm
Z-axis travel
(longitudinal movement of the slide)
2015 mm
Spindle speed
spindle speed
16...2000
Maximum spindle torque, Nm
1000
Main engine power
11 kW
Speed control
Stepped,
21 steps
Spindle bore diameter
95 mm
Spindle end
?11
Number of tool positions
4 pcs
Cutter section
25x25 mm
Moving the tailstock quill
180 mm
Diameter of tailstock quill
80 mm
Tailstock quill taper
Morse 5
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
