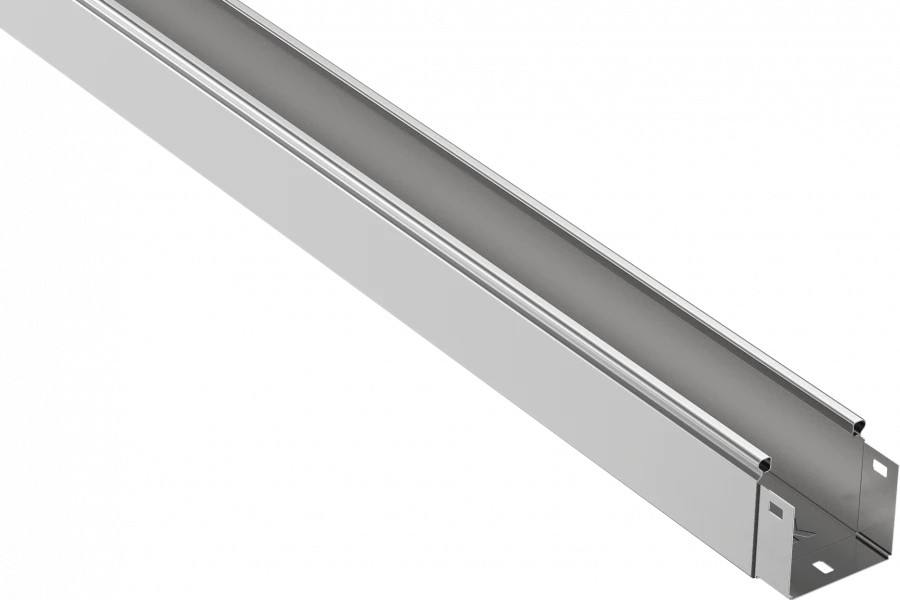

Unperforated Cable Tray 80x100x3000-1.2 CLN10-080-100-120-3 for Power & Low Voltage Applications

Unperforated rolling trays are part of the metal cable-dressing systems of the group of companies IEK. They are intended for laying and protection of power and low-current cables with voltage up to 1000V. When used in conjunction with the cover provides maximum cable protection from external influences, dust and moisture.

Depending on the version, the trays can be used both inside public, industrial buildings, constructions and retail trade objects, and outdoors under a canopy, in the open air, as well as in rooms with high humidity. Rolled non-perforated trays IEK are made of cold-rolled steel coils, galvanised by conveyor method or by immersion of finished products in zinc melt. The IEK rolling tray system consists of straight elements and accessories designed to change the direction of the route, as well as covers and connecting elements of different sizes.

The non-perforated tray is manufactured according to TU 27.33.13-002-83135016-2017. According to safety requirements the product complies with IEC 61537.
