Vacuum Chamber Resistance Furnace SNVE-2.4.2/16 for Thermal Processes

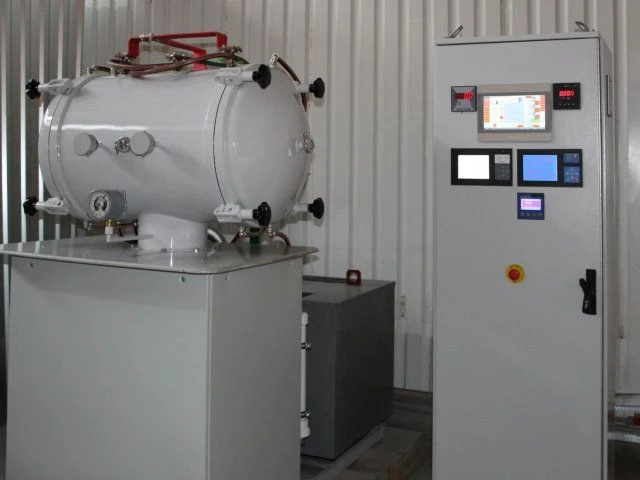

Electric resistance furnace vacuum chamber SNVE-2.4.2/16 is designed for various thermal processes in vacuum and neutral gases at temperatures up to 1600 °?. The equipment consists of the following units: heating chamber, power transformer, vacuum system, water cooling system, process control cabinet. The heating chamber is a cylindrical housing made of stainless steel 12?18?10?

with two lids adjustable in two planes, in which the heating block with heaters and screen heat insulation is installed. The case and covers are made with double walls and are cooled by running water. Viewing windows are provided, which make it possible to observe the process of heat treatment.

One regulating and two control thermocouples BP (A-1) are provided for temperature measurement and regulation.
