Wall-Mounted Reinforced Distribution Cabinet 12U - SHRN-12U-500-12

Available for Import

Wall-Mounted Reinforced Distribution Cabinet 12U for Telecommunications

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

ShRNU-12U-500-12. Wall-mounted distribution cabinet reinforced, size 19" - 12U, overall dimensions ????????= 600?660?500. IP31 type 1.2.

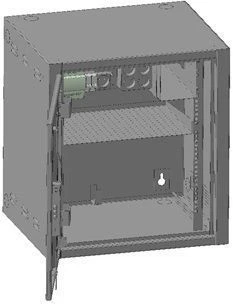

The product is a wall-mounted vandal-proof telecommunication cabinet designed to accommodate MetroEthernet subscriber access node equipment, as well as other active telecommunication equipment or in-house technical means of security systems, control and management of engineering equipment and resource consumption metering. The product is located in entrances of houses, other technical and non-residential premises of small area. The product is made of 1.5 mm thick steel in the form of a one-piece welded construction and painted with light grey powder paint (RAL 7035).

Specifications

Operating temperature range

0...40 °C

Type of accommodation

indoor hinged

Device type

Reinforced wall-mounted distribution cabinet

Height/story (unit)

B1/B8 2100/900 MHz

Height, U

B1/B8 2100/900 MHz

Form factor (rack-mounted, freestanding)

freestanding

Depth

500 mm

Protection class

IP31

Weight

25 kg

Height

660 mm

Width

600 mm

Availability of fasteners to the support (pole)

Armoured glass

Type of accommodation

In the room for surface mounting

Type of construction

All-welded

Height , U

B1/B8 2100/900 MHz

Usable depth

500 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Upper limit of operating temperature

40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
