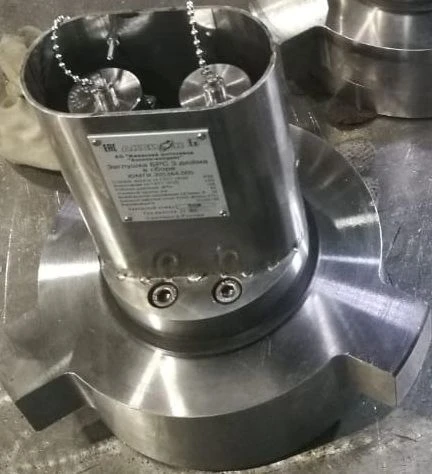

3-Inch BRS Plug Assembly for Manifold Pressure Measurement Applications
Manufacturer:
IZHEVSK MOTOR PLANT "AXION-HOLDING" OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
The plug 3 inch complete is designed for installation at the tapping into the manifold and measuring the pressure of the working medium (water, petroleum products, gel, gel with proppant and chemical additives) passing through the manifold, and converting the value of the measured parameter into a digital signal via Modbus RTU protocol, transmitted via RS-485 interface to the control system PC.
Specifications
Rated supply voltage
24 V
Weight
18 kg
Average service life
20 year
Average MTBF
65000
Test pressure value
160 MPa
Climatic execution according to GOST 15150
UHL
Degree of protection against penetration of external solid objects and water according to GOST 14254
IP 66
Type of explosion protection
1 Ex D IIC Gb U
Connection type
Hammer Union Fig.?1502
Height
219 mm
Width
235.1 mm
Length
234.5 mm
Total power consumption
2 W
Digital output signal
RS-485 (Modbus RTU)
DC supply voltage
19.2...28.8 V
Permissible reduced error of pressure measurement, not more than
0.5 %
Measured pressure
0...105 MPa
Nominal bore diameter
76 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
