Available for Import

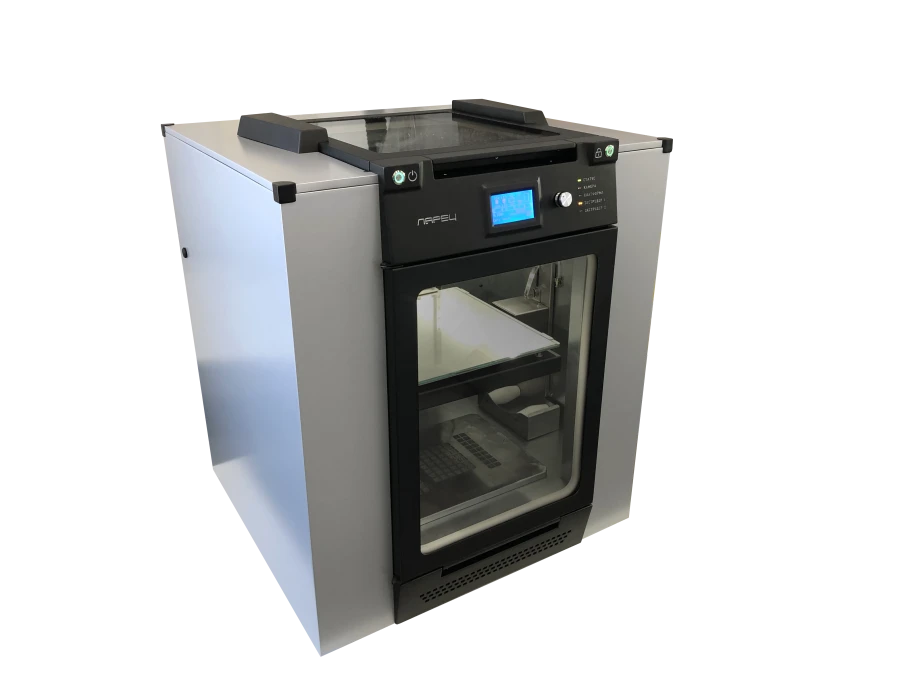

Additive Manufacturing System "Larets" SM-A284 3D Printer for Precise Object Creation

Material Extrusion 3D Printers

Manufacturer:KBSM OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The additive machine "Larets" SM-A284 is a device designed to build physical objects corresponding to the work task by means of layer-by-layer application of thermoplastic materials, mainly refractory polymers

Specifications

XYZ axis drive motors

Stepper motors (nema 17 - 0.9°)

Warranty

B1/B8 2100/900 MHz

Power supply

220 V

Power supply

SBVVBG

Software

open floor (cura, repetier-host)

Case

closed, thermally insulated, double glazed door and hatch.

Print Platform Calibration

automated

Printed platform material

Aluminum

Number of extruders

2 pcs

Maximum print bed temperature

180 °C

Maximum extruder temperature

500 °C

Maximum background temperature of the working chamber

130 °C

Extruder unit cooling

water

Height

655 mm

Width

655 mm

Length

785 mm

Power consumption

peak-2 kw, average consumption 500 watt

Volume of printing area, mm

300x300x300 mm

Printing technology

fdm

Printing material feeding mechanism

remote supply

Loading print material

automated

Placement of print material

inner (with function of material drying) outer (for oversized coils)

Positioning accuracy, µm

SBVVBG

Plastic diameter

1,75 mm, (2,85 mm on request)

Print speed, mm/sec

Up to 120 mm/sec

Safety

Blocking access to camera during printing

Material type

peek, ultem, ppsu, pa/cf, pc, pa, abs, carbon, metal-filled, fiberglass-filled, asa, petg, esd-safe, hips, tpu, pla

Interfaces

sd card, usb, wi-fi, ethernet

Layer thickness

from 50 µm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
