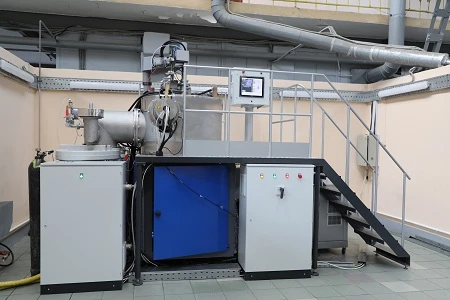

Automated Ion-Plasma Coating System MAP-3 for Industrial Applications

Thermal Processing Units

Manufacturer: National Research Center "Kurchatov Institute" - VIAM

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The unit is designed for application of heat-resistant, corrosion-resistant, erosion-resistant, wear-resistant coatings on turbine and compressor blades of GTE, hard coatings from metal compounds on cutting tools and parts of GTE, including assisted deposition, and also allows to carry out ion etching and ion saturation of the treated surface with metal ions.

Specifications

Number of pieces to be processed simultaneously

12...24 pcs

Speed of coating condensation on the substrate, not more, ?m/min

0.35

Chamber pressure during product cleaning with gas-discharge ion source

0.04...0.053

Pressure in the chamber during coating: metallic

0.0266...0.00665

Pressure in the chamber during coating: cermet coating

0.266...0.1064

Pumping duration up to working pressure of 0.0266 Pa, not more than

Cooling water flow rate

5...8

Installed capacity

95 kW

Overall dimensions of the installation (dxhxv), not more than

4700 x 2500 x 2850 mm

Maximum dimensions of the spraying area on the workpiece, not more, (diameter × height)

125 × 200 mm
