GPI Control Remote with 10 Channels - KR-101C for External Device Management

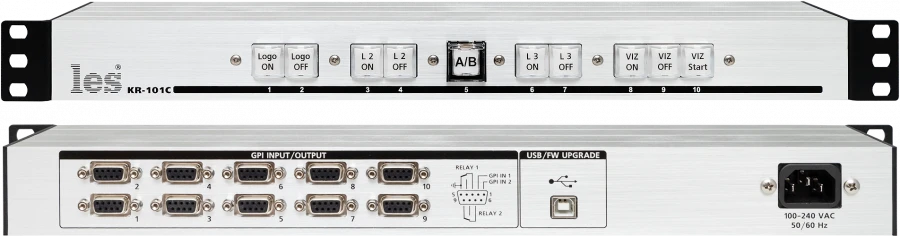

The console is designed to control external devices using GPI signals, it has 10 independent channels, each channel contains two outputs with switching relay pair and two GPI inputs, as well as the control button on the front panel. The channels can be combined into dependency groups. The logical state of the output signals is stored in non-volatile memory, when the power is switched off the relay pairs are disconnected, at the next switching on the state of the console is restored.

LED backlighting of the buttons changes colour depending on the internal state of the output signals. The logic of colour change on the buttons can be programmed using a PC. The remote control is powered by 230 V AC mains.

KR-101C has side corners for mounting in a telecoms rack. The warranty period is 24 months.
