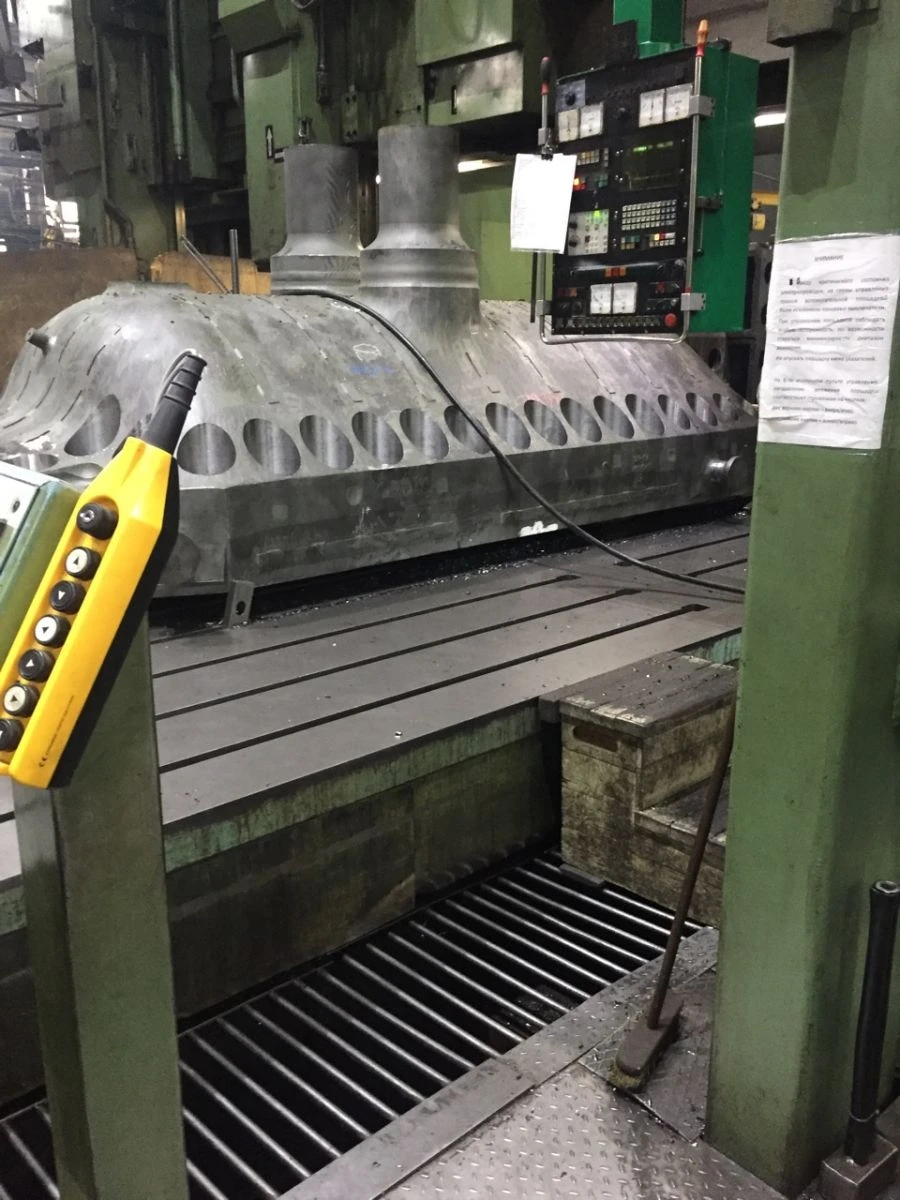

High-Pressure Cylinder with Valve Block for K-800-23.5-5MR Turbine

Available for Import

High-Pressure Cylinder with Valve Block for Steam Turbine K-800-23.5-5MR - Efficient Power Distribution

Steam Turbine Parts

Manufacturer: SILOVYE MASHINY OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The steam distribution of the VDC is throttle. Steam supply is carried out through two blocks of valves: stop and regulating, located separately from the turbine DDC. The flowing part of the DDC is of reactive type and consists of 16 pressure stages. The working and guide blades have a T-shaped design of the tail joint and a one-piece milled band. Spring-loaded overband seals of the labyrinth type are used. The rotor is one-piece forged without an axial channel.

Specifications

Temperature of fresh steam upstream of CVD stop valves

540 °C

Cooling water temperature at the condenser inlet

B1/B8 2100/900 MHz °C

Absolute pressure in the condenser (reference)

3.5

Volume flow rate of cooling water passing through the condenser

Nominal / maximum fresh steam flow rate

694

Absolute pressure of fresh steam upstream of the stop valves of CVD

23.54 MPa
