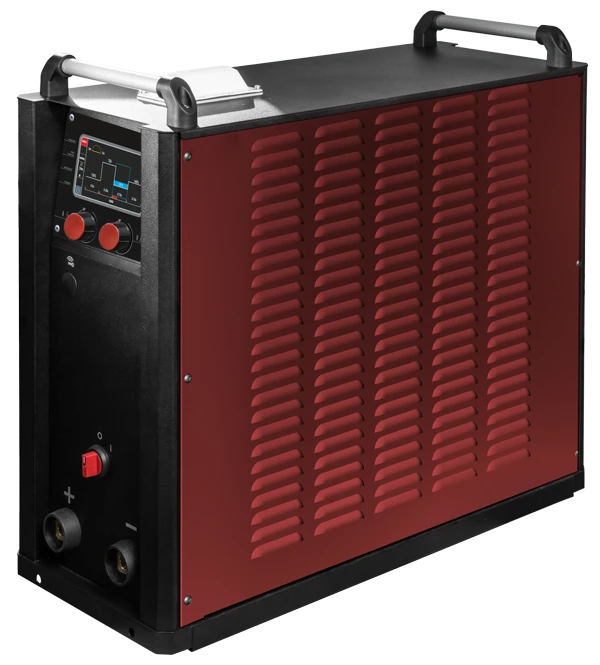

Industrial Inverter Welding Machine for Manual and Semi-Automatic Welding - ROSWELD MIG 500

Electric Welding Machines

Manufacturer: ZTI LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

ROSWELD MIG 450. Machine for manual and semi-automatic welding ROSWELD MIG 550 AES-2. Apparatus for manual and semi-automatic welding

Description

Industrial inverter welding machine with welding parameters software for semi-automatic welding with solid electrode of carbon and high-alloy steels, aluminium alloys at currents up to 350A. Supports modes with controlled current form, pulse modes, combined welding modes. It has the function of manual arc welding with piece electrode (MMA), argon-arc welding on direct current (TIG DC).

It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40 ... +40 ° C, efficiency 96%. The control cycle of welding arc parameters is 6.6 µs.

Complete with a system of remote control and documentation of parameters PAK WeldWeb..

Specifications

Type of product according to PP RF 616

Arc welding equipment;

Minimum welding current

25 A

Rated welding current

500 A

Operating voltage

380 V

Weight

55.8 kg

Mains frequency

50...60

Manual arc welding

20-500 ?

argon-arc welding

3-500 ?

Semi-automatic welding

25-500 ?

No-load voltage

93 V

Maximum power consumption, kW

22.2

Length

740 mm

Width

300 mm

Dimensions

740x300x660 mm

Mark

rosweld

Equipment

power source, remote wire feeder upp, liquid cooling unit bjo mig, cylinder cart, welding torch, grounding cable, cable package, remote parameter control system pak weld web.

Load Duration (LL)

100 %

Type of welding voltage regulation

smooth

AC mains supply voltage

300...500 V

Type of welding current

permanent

Maximum welding current

500 A

Height

660 mm

Operating modes (continuous/pulse)

pulsed and short-pulsed

Current intensity at 100% SP

500 A

EFFICIENCY

96 %

Cos f

0,99

Degree of protection

ip 34

Insulation class

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
