Signal Conditioner A121-XX for IEPE Voltage Conversion

Available for Import

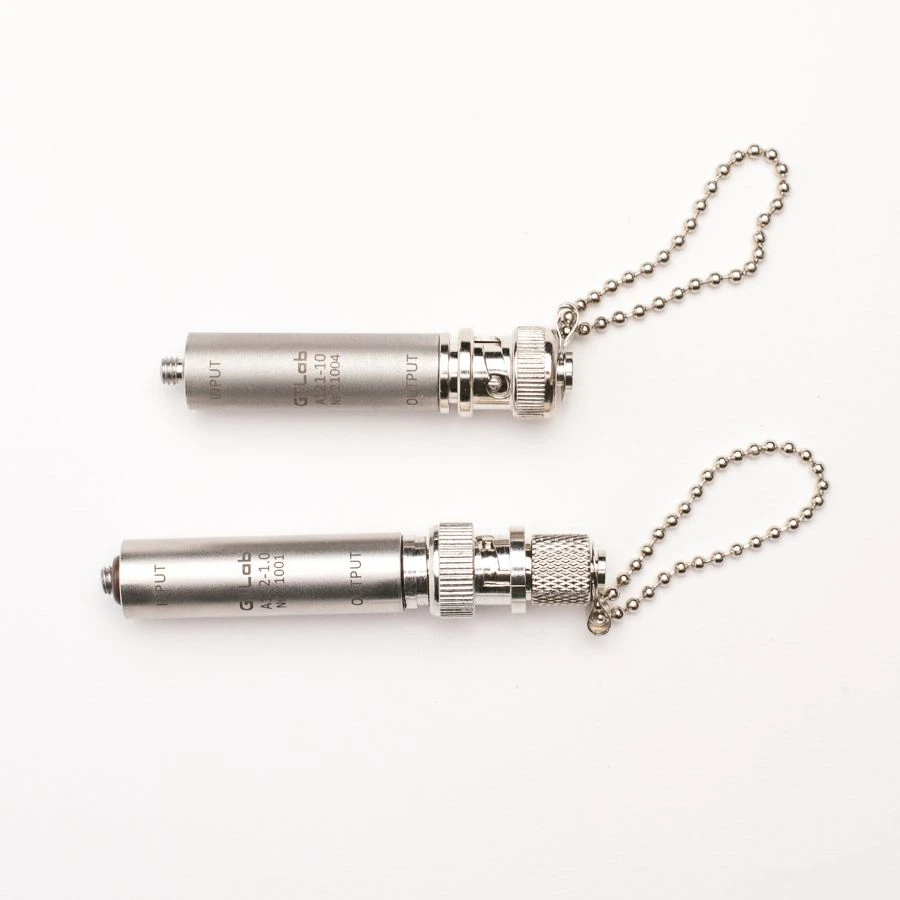

Signal Conditioner A121-XX for Converting Charge Signals to IEPE Voltage

Analog Signal Conditioners

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Converting signal conditioners are designed to convert a charge output sensor signal to an IEPE standard voltage. In addition, the signal conditioner matches the high output resistance of the sensor to the input resistance of the IEPE measuring devices.

Specifications

Charge conversion ratio - XX

Maximum input charge (peak)

± 50,000 pKl | ± 25,000 pKl | ± 10,000 pKl | ± 5,000 pKl | ± 2,500 pKl | ± 1,000 pKl | ± 500 pKl | ± 250 pKl | ± 100 pKl

Operating frequency range at minus 1 dB level

0.5 ... 100 000 Hz | 0.5 ... 50 000 Hz | 0.5 ... 30 000 Hz

Natural noise RMS level in the range 1 .... 22 000 Hz

30-10-6pKl/pF | 5-10-6pKl/pF | 2-10-6pKl/pF

Tolerance limits of the basic relative error of the charge conversion coefficient at a frequency of 1 kHz

± 2 %

Output impedance

< 500 ohms

Maximum amplitude of output voltage

± 5 ?

Nonlinear distortion factor

< 5 %

Tolerance limits of additional relative error of the charge conversion coefficient in the operating temperature range

± 2 %

Power supply: ? voltage ? current

+(18 ... 30)? 2 ... 20 mA

DC output voltage level

8 ... 13 ?

Weight

19 ?

Operating temperature range

-40 ... +85 °?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
