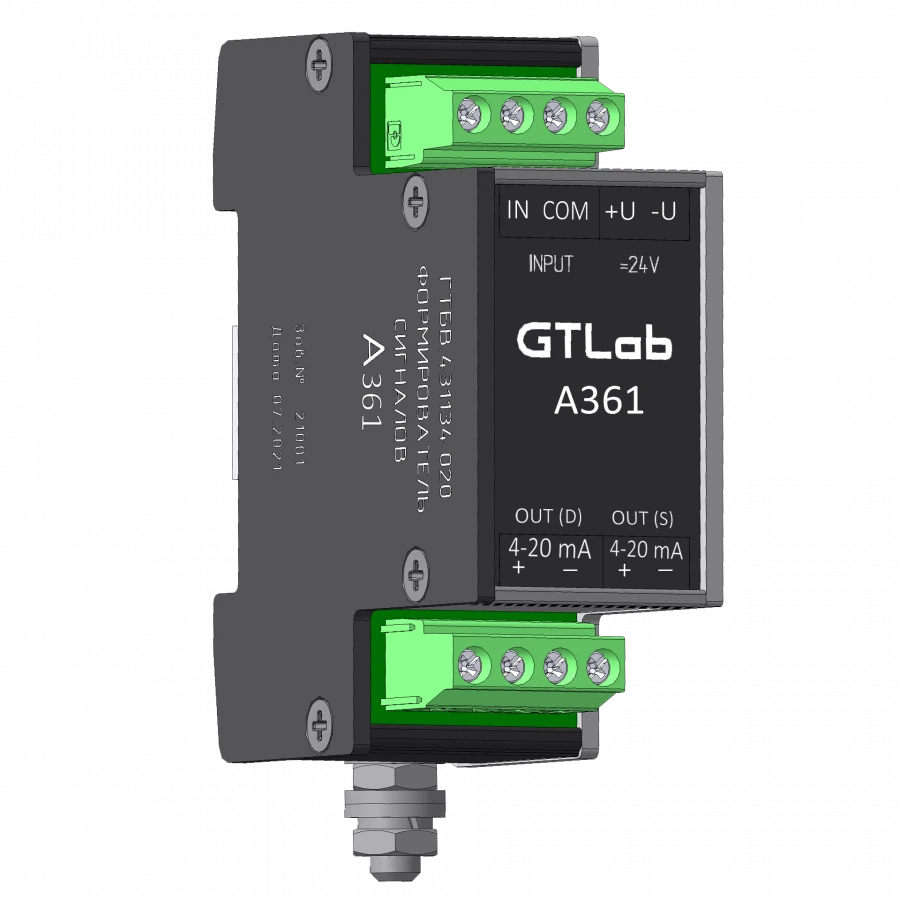

Signal Generator A361.XX.XX.XXX for Vibration Measurement and Displacement Detection

Analog Signal Conditioners

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Signal shaper in combination with the sensor forms a means of measuring vibration and movement of parts of machines and mechanisms. Current output 4-20 mA relative vibration displacement OUT(D); current output 4-20 mA static gap OUT(S); high temperature and time stability of characteristics; possibility of replacement of the same type of primary converters; transmission of the output current signal at a distance of up to 1000 m.

Specifications

Static gap measurement range

0,2 ... 2.2 mm (for 5 mm coil) 0.3 ... 3,3 mm (for 8 mm coil)

Swings of measured relative vibration displacement

0,125; 0,25; 0,5 mm (for 5 mm coil) 0,25; 0,5; 1 mm (for 8 mm coil)

Conversion factors for relative displacement sweep measurement with 4-20 mA DC output

128; 64; 32 µA/?m (for 5 mm coil) 64; 32; 16 µA/?m (for 8 mm coil)

Conversion factors for static gap measurement with 4-20 mA DC output

8 µA/µm (for 5 mm coil) 5.3 mA/µm (for 8 mm coil)

Setting error of conversion coefficients

± 5%

Nonlinearity of the amplitude response

± 5%

Operating frequency range (frequency response unevenness ± 1 dB)

2 ... 10 000 Hz

Operating temperature range

-30 ... 65 °C

Measurement error in the operating temperature range

± 2%

Operating temperature range of the sensor

-40 ... 150 °C

Measurement error in the operating temperature range with sensor

± 10%

Power supply voltage

+ (18 ... 30) ?

Consumption current

< 35 mA

Level of RMS of intrinsic noise

? 3 µm (for 5 mm coil) ? 4 µm (for 8 mm coil)

Input/output connectors

terminal blocks

Sensor cable length

0,5 ... 18 ?

Weight

150 ?

DIN rail mounting

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
