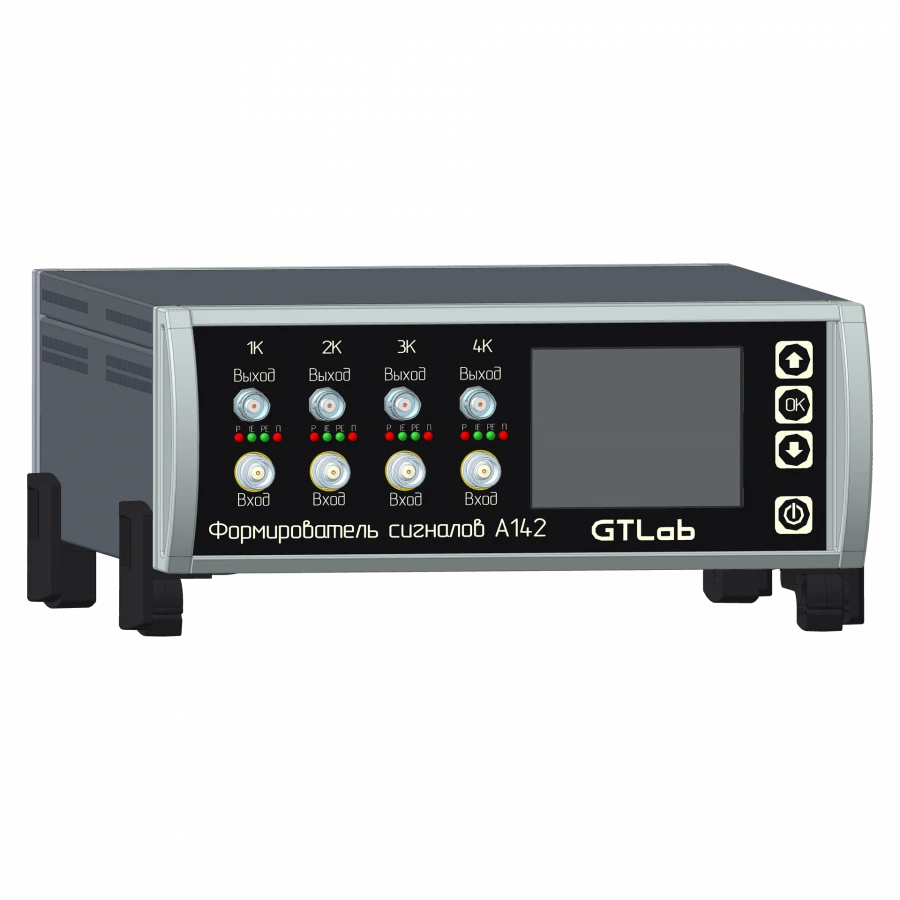

Signal Conditioner A142 for Accurate Dynamic Process Measurement

Analog Signal Conditioners

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Signal shaper designed to measure prameters of dynamic processes in the mode of charge amplifier/amplifier.
voltages. Normalisation mode by the conversion factor of sensors; overload indication mode; low noise level; galvanically isolated inputs; built-in display;
Signal conditioners control of operating modes via Ethermet.

Specifications

Types of transducers supported

IEPE; PE

Maximum input voltage (IEPE)

± 10 B

Maximum input charge (peak) (PE)

10^5 pCal

Range of sensor conversion coefficients

10^-12... 10^3 V/U (in voltage (IEPE) 10^-12... 103 pKl/U (in charge (PE))

Operating frequency range

0,3 ... 100,000 Hz

Input impedance of the recorder

> 10^9 ohms

Output Impedance

< 100 ohms

Maximum output voltage amplitude

± 10 ?

Voltage intrinsic noise RMS level

? 20 µV

Level of RMS of intrinsic noise by charge

? 20-10^-6 pKl/pF

Supply voltage for IEPE sensors

+24 ± 2 ?

Supply current of IEPE sensors

+5.7 ±1.2 mA

Voltage gain factor, (+0,5%)

1; 2; 5; 10; 20; 50; 100

Charge conversion factor, (+0.5%) (PE)

0.1; 0.2; 0.5; 10; 20; 50; 100 mV/pKl

Coefficient of influence of ambient temperature

? 0,025 %°?

VHF with decay of frequency response ? 80 dB/decade, at -1 dB level

0,3; 1; 2; 10

VLF with frequency response ? 80 dB/decade, at -1 dB level

0.2; 0.5; 10; 20; 50; 100 kHz

Power supply voltage

12 ± 2 ?

Consumption current

? 1 ?

Input connector

TNC

Output connector

BNC

Connectors for power supply connection

Сетевой адаптер

Weight

3300 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
