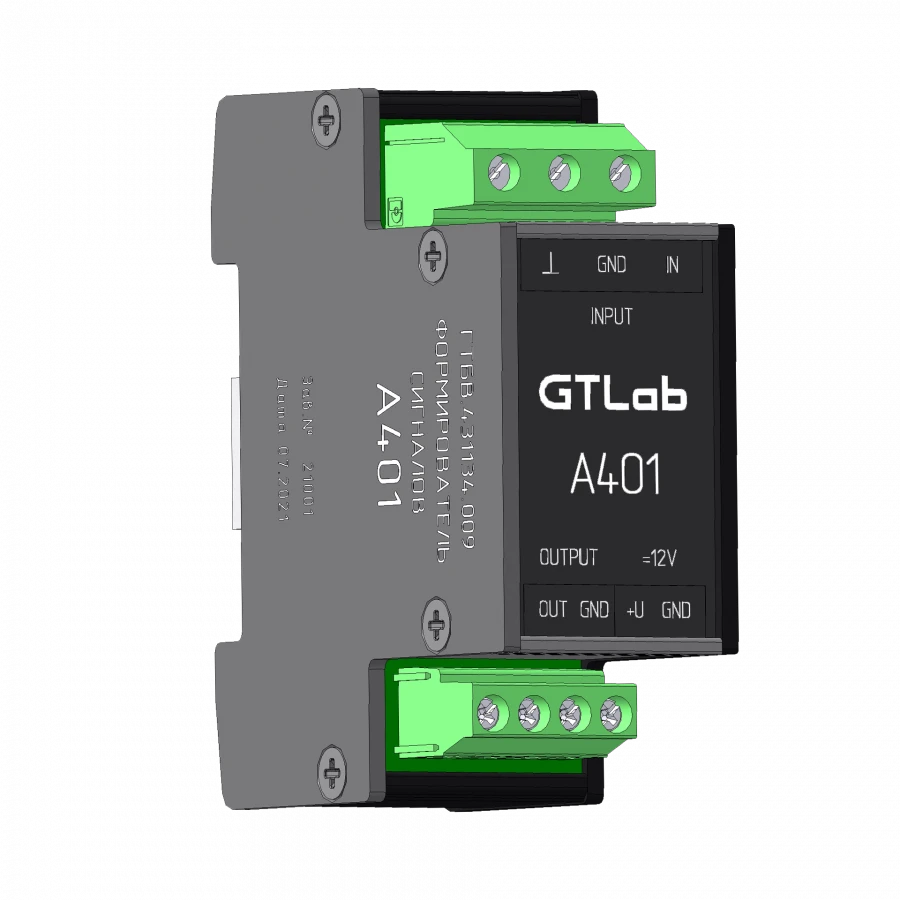

Signal Conditioner A401 for Acoustic Emission Sensors

Available for Import

Signal Conditioner A401 for Enhancing Acoustic Emission Sensors

Analog Signal Conditioners

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Signal shaper for receiving and amplifying to normalised values the signals of acoustic emission transducers with built-in electronics. Allows to use long communication lines from the transducer to the amplifier (up to 10m.); work on coaxial 75 Ohm line up to 100m. long; small intrinsic noise.

Specifications

Gain factor

20 ± 0.25 dB

Operating frequency range (-3 dB ACR non-uniformity)

Operating frequency range (ACF non-uniformity -3 dB)

Maximum output voltage amplitude

± 1 ?

Nonlinear distortion factor

< 5 %

Level of RMS eigenvalue noise reduced to the input

< 5 µV

Output Impedance

75 ± 0.5 ohms

Measurement error in the operating temperature range

± 2 %

Operating temperature range

-40 ... +85 °?

Sensor supply voltage

9 ± 0,5 ?

Power supply voltage

12 ± 1 ?

Consumption current

< 25 mA

Input/output connectors

screw terminals

Screw terminal blocks

Aluminum alloy

Weight

150 ?

DIN rail mounting

Armoured glass

Explosion protection

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
