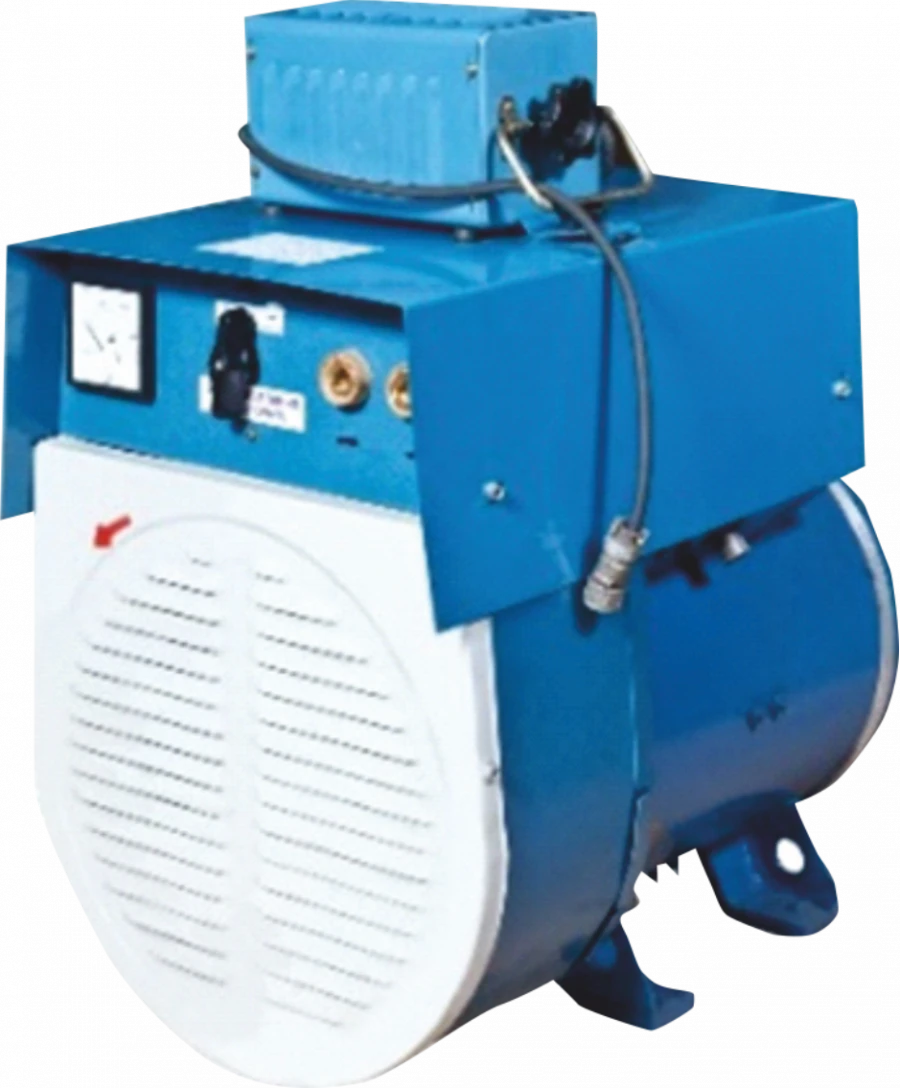

GD-4004 U2 Type 27 Welding Generator for Manual Arc Welding Applications

Electric Soldering & Welding Machines

Manufacturer: UZSNGU "ISKRA" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Welding generator GD-4004 U2 rev.12 Welding generator GD-5001 U2 rev. 02 Generator welding GD-4004 U2 rev. 24

Description

Generator welding GD-4004 U2 version 27 is designed to supply one welding station for manual arc welding, cutting and cladding of metals with direct current with a fusion electrode. It is used both indoors and outdoors. When working outdoors, the generator must be protected from direct exposure to solar radiation and atmospheric precipitation.

The rated parameters of the generator refer to its operation at an altitude of up to 1000 metres above sea level, in areas with moderate climate at ambient air temperature from -45°? to +40°? and relative humidity not exceeding 80% at 20°?.

Version 27 - the generator is designed for connection to the engine type NF4102ZD manufactured in China.

Specifications

Rated welding current at 60% RH

400 A

Rated operating voltage

NZ-150-14,5 V

Welding current control limits, small range

60...160 A

Welding current control limits, large range

75...430 A

No-load voltage, not more

Flat grinder, Specialised grinder V

Load duration, PU

60 %

Nominal welding cycle time

Highest welding current at 100 % LOI

310 A

Highest welding current at 35% LOI

430 A

Efficiency factor, not less than

70 %

Drive motor power

8 kW

Rotational speed

1800...2000

Sound level at the reference radius of 3m, max.

Length

545 mm

Width

448 mm

Height

625 mm

Weight, not more

170 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
