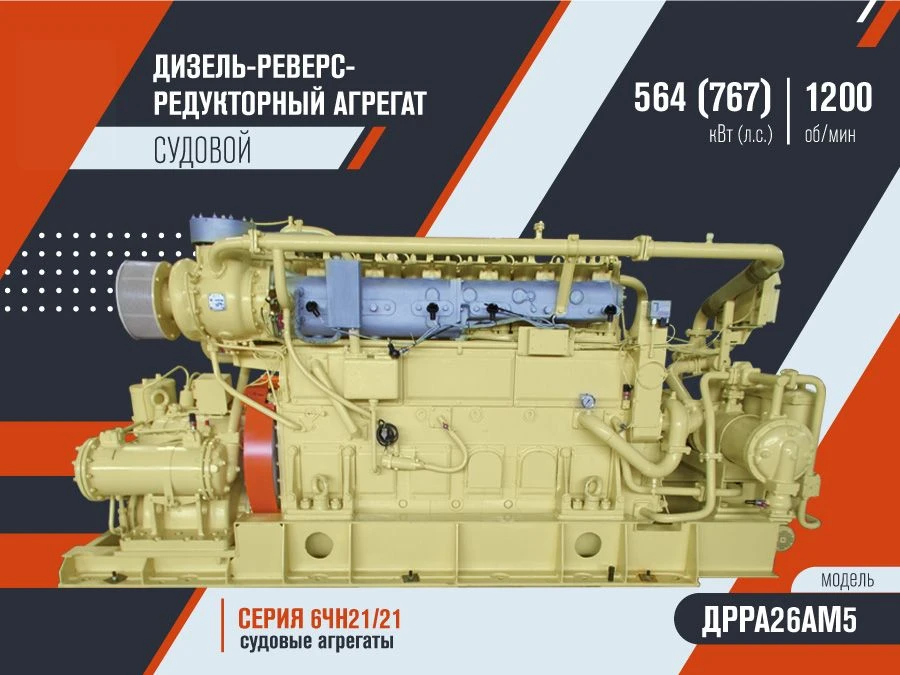

Diesel Reversing Reduction Unit DRRA26AM5 for Flexible Operation

Diesel-reverse-gear unit DRRA26AM5 of right and left rotation with air start from compressed air, as well as start from electric starter according to TU 3123-029-00210644-2010. Specification DA26AM5.00.000. Rated engine power is 564kW.

Diesel type - 236D-08 4-stroke, single-row, liquid-cooled, with gas turbine blower and charge air cooling. Nominal speed is 1200 rpm Diesel-reverse-reduction unit DRRA26AM5 is a complete product and consists of a diesel engine, reverse-reduction gear, water-oil and water-water coolers, oil filters, oil-pumping unit, assembled on a common frame. On the units, the gearbox is rigidly mounted on the ship's frame, and the diesel engine on shock absorbers and connected by an elastic coupling.
