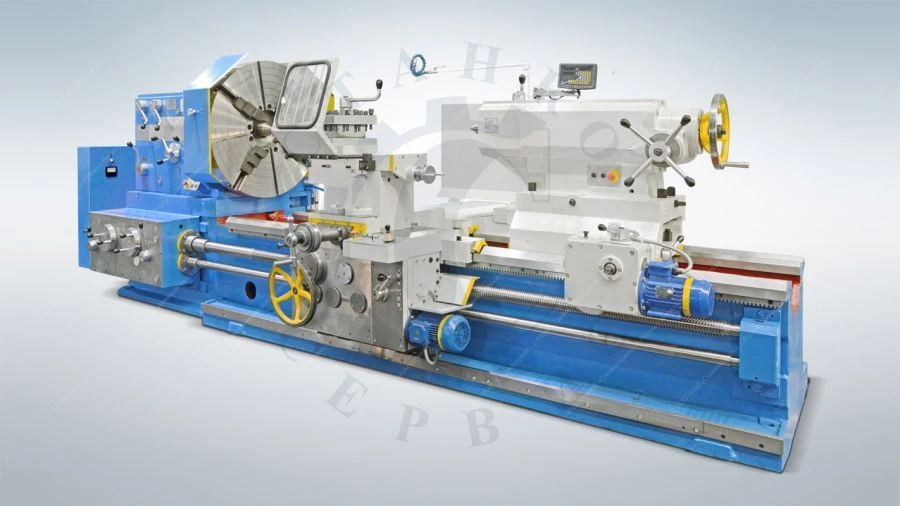

Precision Lathe Machine for Turning and Threading RT817F1-1
Manufacturer:
STANKOSERVIS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch
Specifications
Type of product according to PP RF 616
Turning and screw-cutting machines (universal, with CNC, CNC)
Height
1950 mm
Width
2200 mm
Length
4140 mm
Largest diameter of the workpiece to be machined above the bed
1140 mm
Longest workpiece length
1000 mm
Spindle speed limits
5...500
Largest diameter of the workpiece to be mounted above the bed
1370 mm
Digital Display Unit (DDU)
Installed
Roughness of the cylindrical surface of the sample product after its finish machining
Ra 2.5 µm
Accuracy class of machine tools according to GOST 8-82
?
Machine weight
11 t
Height of the tool to be mounted
SBVVBG mm
Main motion drive power
30 kW
Highest cutting force Pz
41000
Highest torque on the spindle
9.5 kNm
Speed of rapid transverse movements of the slide
1000 mm/min
Speed of rapid longitudinal movements of the caliper
3000 mm/min
Step limits for machinable modular threads
0.5-24 module
Step limits for machinable inch threads
24-1/4 threads per 1 inch
Step limits for machinable metric threads
1...96 mm
Maximum lateral movement of the slide
700 mm
Maximum longitudinal movement of the slide
700 mm
Diameter of the cylindrical bore in the spindle
128 mm
Largest diameter of the workpiece to be mounted and machined above the slide
1100 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
