Universal Lathe Machine for Turning and Thread Cutting RT117F1-5

Available for Import

Universal Lathe Machine for Precision Turning and Thread Cutting RT117F1-5

Manual Metal Lathes

Manufacturer:RSZ LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Spindle lathe turning machine RT117-3 Spindle lathe turning machine RT117-16 Rotary screw-cutting machine tool RT117-1 Rotary screw-cutting machine tool PT117 Spindle lathe turning machine RT117-11

Rotary screw-cutting lathe RT117-5 Spindle lathe turning machine RT117-10 Turning and screw-cutting machine tool RT117F1-16 Spindle lathe turning machine RT117-13 Used PT117F1 Lathe and screw-cutting machine Used PT117F1-8 turning centre lathe Spindle lathe turning machine RT117-6 Spindle lathe turning machine RT117-8 Rotary screwcutting lathe RT117F1-10 Turning and screw-cutting machine tool RT117F1-13 Used PT117F1-1 turning centre lathe Turning and screw-cutting machine tool RT117F1-11 Turning and screw-cutting machine tool RT117F1-6

Description

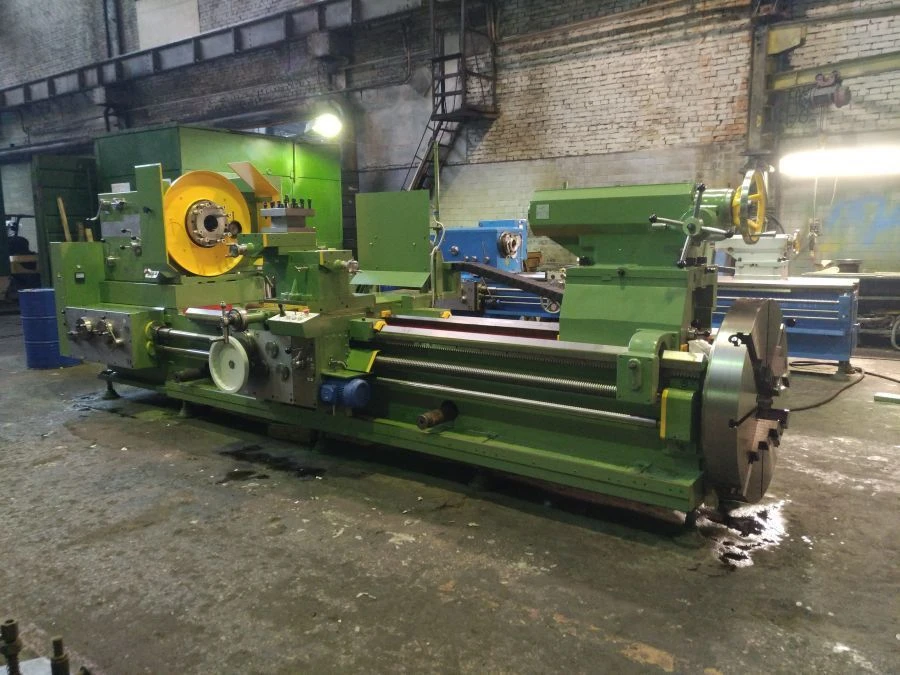

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Length

8140 mm

Width

2200 mm

Height

2000 mm

Largest diameter of the workpiece to be mounted above the bed

1200 mm

Digital Display Unit (DDU)

established

Roughness of the cylindrical surface of the sample product after its finish machining

Ra 2.5 µm

Accuracy class of machine tools according to GOST 8-82

Height of the tool to be mounted

SBVVBG mm

Machine weight

16000 kg

Main motion drive power

22 kW

Highest cutting force Pz

41000

Highest torque on the spindle

9.5 kNm

Speed of rapid transverse movements of the slide

1000 mm/min

Speed of rapid longitudinal movements of the caliper

3000 mm/min

Pitch limits of modular threads to be cut

0.5-30 module

Pitch limits of inch threads to be cut

28-1/4 threads per 1 inch

Step limits of metric threads to be cut

1...120 mm

Maximum lateral movement of the slide

700 mm

Maximum longitudinal movement of the slide

4600 mm

Diameter of the cylindrical bore in the spindle

128 mm

Largest diameter of the workpiece to be machined above the bed

1140 mm

Largest diameter of the workpiece to be mounted and machined above the slide

900 mm

Longest workpiece length

5000 mm

Spindle speed limits

5...500

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
