R50 Type Switch Mark 1/5 for Metro Rail Applications Available for Import

R50 Type Switch Mark 1/5 for Efficient Metro Rail Track Switching

Wide Gauge Track Switches
Manufacturer: MSZ OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

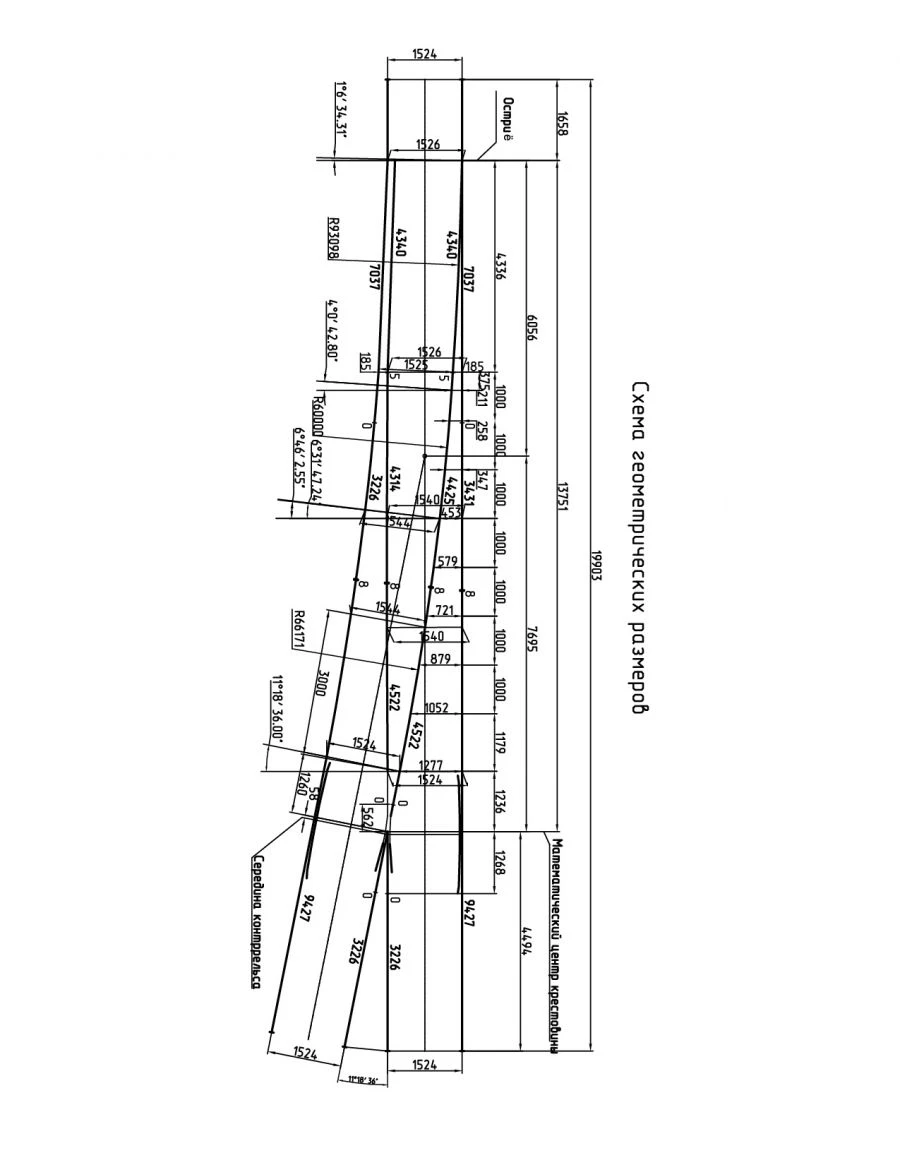

The R50 type track crossing of 1/5 grade on reinforced concrete bars with screw and dowel fastening is designed for laying on the underground railway tracks. It is intended for transfer of rolling stock from one track to another. The crossbar is solid cast.

The counter rail is not connected with the track rail. The shackles and frame rails are hardened by HFI. The P50 type 1/5 mark 1/5 switches are manufactured in the following versions: VSP05.

00. 000 - right; VSP05. 00.

000-01 - left.

Specifications

Cross type by angle
Spicy
View
Single
Type of single transfer
Ordinary
Arrow design
With rotating sharps
Cross brand
1/5
Rail type
?50
View in the direction of a side or crossing track
Left, right
Cross type by construction
Solid
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of timber
Reinforced concrete
Type
?65

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
