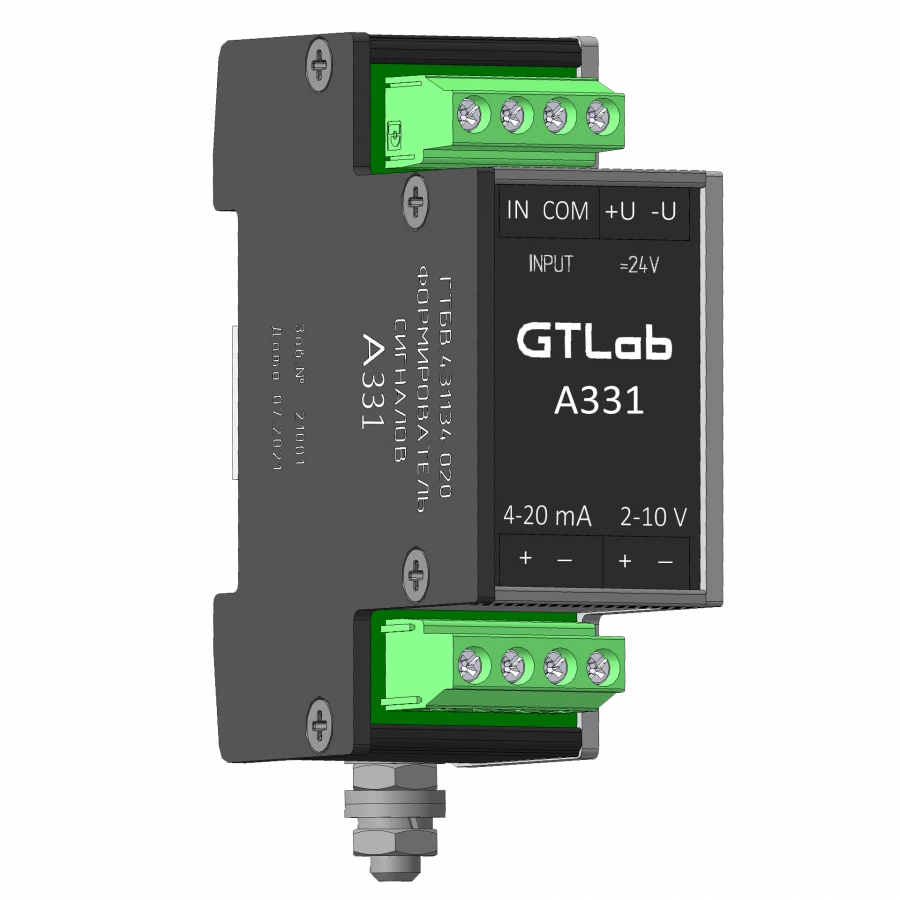

Signal Generator A331.XX.XX for Vibration and Displacement Measurement

Available for Import

Signal Generator A331.XX.XX for Accurate Vibration and Displacement Measurement

Analog Signal Conditioners

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The signal conditioner combined with the sensor forms a means of measuring vibration and movement of machine parts and mechanisms.
Analogue current 4-20 mA and voltage 2-10 V outputs; high temperature and time stability of characteristics; possibility of replacement of the same type of primary converters; transmission of the output current signal at a distance of up to 1000 m.

Specifications

Displacement measuring range

0,2 ... 2.2 mm (for 5 mm coil) 0.3 ... 3,3 mm (for 8 mm coil)

Conversion factors for relative displacement measurement with current output

8 ?A/?m (for 5 mm coil) 5.3 ?A/?m (for 5.3 ?A/?m)

Conversion factors for relative displacement measurement with voltage output

4 mV/µm (for 5 mm coil) 2.7 mV/µm (for 8 mm coil)

Setting error of conversion coefficients

± 5%

Nonlinearity of the amplitude response

± 5%

Operating frequency range (frequency response unevenness ± 1 dB)

0 ... 10 000 Hz

Operating temperature range

-30 ... 65 °C

Measurement error in the operating temperature range

± 2%

Operating temperature range of the sensor

-40 ... 150 °C

Measurement error in the operating temperature range with sensor

± 10%

Power supply voltage

+ (18 ... 30) ?

Consumption current

< 35 mA

Level of RMS of intrinsic noise

? 3 µm (for 5 mm coil) ? 4 µm (for 8 mm coil)

Input/output connectors

terminal blocks

Sensor cable length

0,5 ... 18 ?

Weight

150 ?

DIN rail mounting

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
