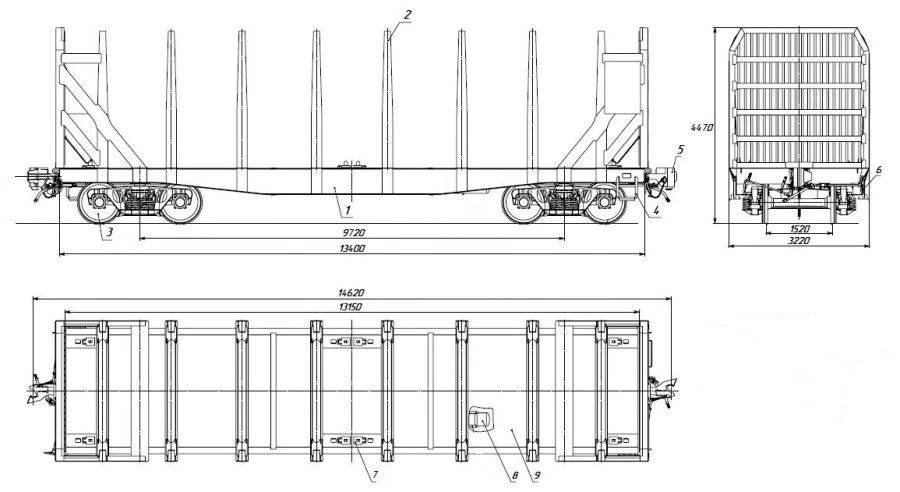

Timber Transport Platform for Heavyweight Containers - Model 13-6707 GRUV-1019.00.00.000
Manufacturer:
TRANSMAШ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The platform is designed for carriage of large-tonnage container GOST R 53350 (ISO 668:1995) type 1AAA, 1AA, 1A, 1AH. 1??, 1?, 1?? Packaged and unpackaged timber - Round timber and sawn timber with lengths from 3.0 to 13.0 metres.
Specifications
Type of product according to PP RF 616
Railroad type flat cars
Type
Platform for carriage of timber and large-tonnage containers
Payload
69 t
Tare weight
25 t
Calculated load from wheel set on rails
23,5
Car length along the coupling axes of couplers
14620 mm
Wagon base
9720 mm
Height of racks from the level of the top of the rail heads
4310 mm
Internal (loading) width, not less than
2866 mm
Gauge according to GOST 9238 of the railcar
1-?
Dimensions according to GOST 9238 of the cart
02-VM
Height of the loading platform from the UHGR
1327 mm
Height of the coupling axle from the level of the top of the rail head
1080 mm
Design speed
3
Track width
1520 mm
Cart model
18-9771
Volume of the body (without "cap")
107
Number of pairs of poles
6 pcs
Number of end walls
2 pcs
Number of hinged stops for securing containers
8 pcs
Designated service life of the railcar
32 year
Designated service life before overhaul
17 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
